Victorious · Cooling System · Land Rover
Water Outlet Tube Thermostat Hose – 3.0L V6 & 5.0L V8 Petrol
OE-specification cooling system component for Discovery, Range Rover Sport, Velar, and Defender models with supercharged petrol engines.
3.0L V6 / 5.0L V8
Supercharged Petrol
Discovery 4
Range Rover Sport L494
Range Rover Velar
Defender L663
Jaguar Compatible
Cooling System
Overview
The water outlet tube thermostat hose is a critical component in the cooling system of Land Rover Discovery 4, Range Rover Sport, Range Rover Velar, Defender (2020+), and compatible Jaguar models fitted with 3.0L supercharged V6 or 5.0L supercharged V8 petrol engines. This component connects the thermostat housing to the radiator inlet, regulating coolant flow and maintaining optimal engine temperature during all driving conditions.
Cooling system failures are among the most common causes of roadside breakdown. When the water outlet tube develops cracks, leaks, or internal degradation from thermal cycling, coolant loss accelerates, risking catastrophic engine damage. Our OE-specification replacement restores direct-fit precision and coolant integrity.

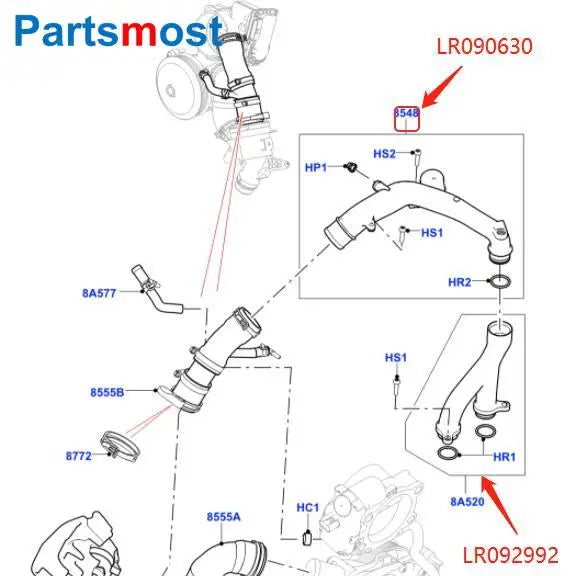

This is a genuine-quality component engineered to the original Land Rover specification (LR090630 upper, LR092992 lower, or combined LR050935). Unlike aftermarket alternatives, our hose maintains factory pressure ratings, temperature tolerances, and connection geometry—critical for supercharged engines where thermal stress is extreme.
What's Included
🔧
Water Outlet Tube
OE-specification thermostat hose assembly
✓
Direct Fit
No modification or adapter required
📋
OEM Part Numbers
LR090630, LR092992, AJ813917, AJ813865
🛡
12-Month Guarantee
Backed by Victorious Automotive warranty
Product Highlights
- OE-quality hose rated for supercharged V6 and V8 thermal loads
- Factory thermostat housing connection geometry preserved
- Silicone inner core resistant to 130°C+ coolant temperatures
- Reinforced with braided fibre for pressure stability
- Direct replacement for original Land Rover and Jaguar components
- Compatible with both upper and lower thermostat positions
- No coolant system flush required for installation
- Tested to OE pressure and temperature specifications
- Genuine Partsmost brand—OEM-equivalent quality
- Fits Discovery 4, Range Rover Sport (2014+), Velar (2017+), Defender (2020+), and Jaguar models with qualifying engines
Compatibility
| Vehicle Model |
Engine |
Years |
Fit Status |
| Land Rover Discovery 4 (LR4) |
3.0L V6 / 5.0L V8 SC |
2010–2016 |
Direct Fit |
| Range Rover Sport L494 |
3.0L V6 / 5.0L V8 SC |
2014–2020 |
Direct Fit |
| Range Rover Vogue L405 |
3.0L V6 / 5.0L V8 SC |
2013–2020 |
Direct Fit |
| Range Rover Velar |
3.0L V6 / 5.0L V8 SC |
2017–2022 |
Direct Fit |
| Land Rover Discovery 5 |
3.0L V6 SC |
2017–2024 |
Direct Fit |
| Land Rover Defender L663 |
3.0L V6 / 5.0L V8 SC |
2020–2024 |
Direct Fit |
| Jaguar F-Pace, XF, XE |
3.0L V6 / 5.0L V8 SC |
2015–2020 |
Direct Fit |
| Non-supercharged petrol engines |
All others |
– |
Not Compatible |
Note: Multiple variants are listed because this product is available as upper hose only, lower hose only, or combined assembly. Confirm your specific fitment and which section (upper/lower) you require before purchase. Contact us with your VIN if uncertain.
Installation Notes
Difficulty Level: Intermediate | Time: 45–90 minutes
- Allow engine to cool completely. Open coolant expansion tank cap slowly to release pressure.
- Place drain pan beneath thermostat housing and disconnect old hose at both connection points.
- Remove old hose clips or clamps. Note clip positions for reinstallation.
- Dry thermostat housing and radiator inlet connections with clean cloth.
- Position new hose, align connection points, and secure with stainless-steel hose clips.
- Refill coolant expansion tank to "Max" level with approved Land Rover coolant.
- Start engine, monitor temperature gauge, and check for leaks at both connections.
- Top up coolant as needed once engine reaches normal operating temperature.
⚠ Warning: Do not open coolant system on a hot engine—risk of scalding. Always allow 30+ minutes cool-down. Use genuine Land Rover coolant only; mixing brands can degrade hose internal chemistry. If coolant loss continues after installation, inspect radiator and water pump for secondary leaks.
Keep Your Cooling System Running Strong
Thermal stress on supercharged petrol engines demands precision components. Our OE-specification water outlet tube is engineered to restore factory cooling performance and protect your engine investment.
Shop Water Outlet Tubes
Use code 22GET20 for 20% off any 2 items
✓ 30-Day Money-Back
✓ 12-Month Guarantee
✓ 4.9/5 Stars
✓ Worldwide Shipping
Questions? Call +44 203 943 9919 Mon–Fri 9am–7pm GMT.
Disclaimer: Victorious Automotive is not affiliated with, endorsed by, or connected to Jaguar Land Rover Limited, Land Rover, Range Rover, Defender, Discovery, or their respective logos and trademarks. All references to vehicle models, part numbers, and specifications are made solely for identification and compatibility purposes. This product is an aftermarket component of OE quality manufactured to original specification. Always verify fitment with your vehicle's VIN before purchase.
