Victorious · Multi-Vehicle · Cooling System Parts

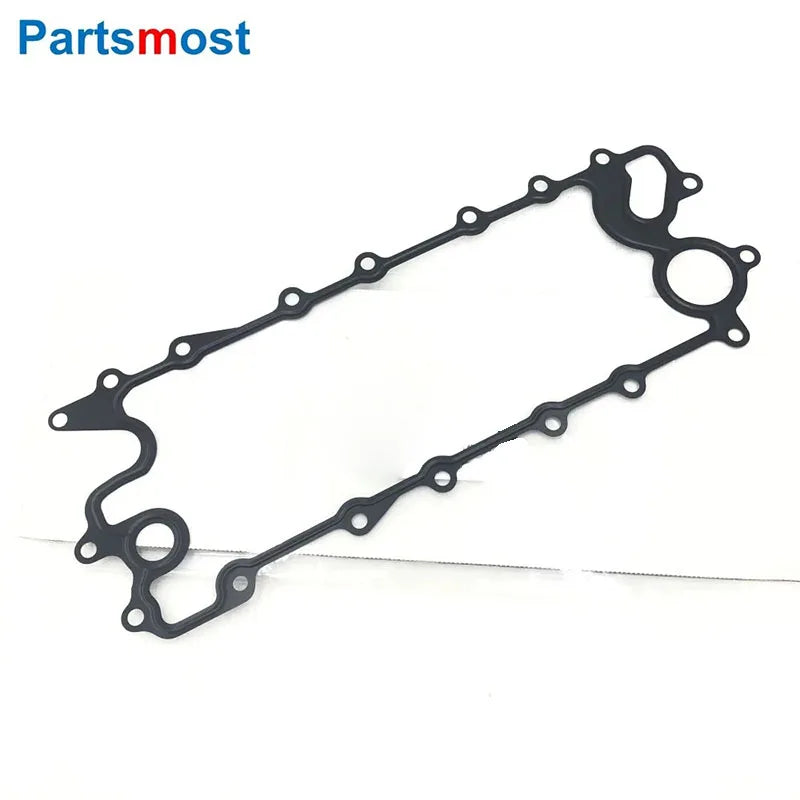

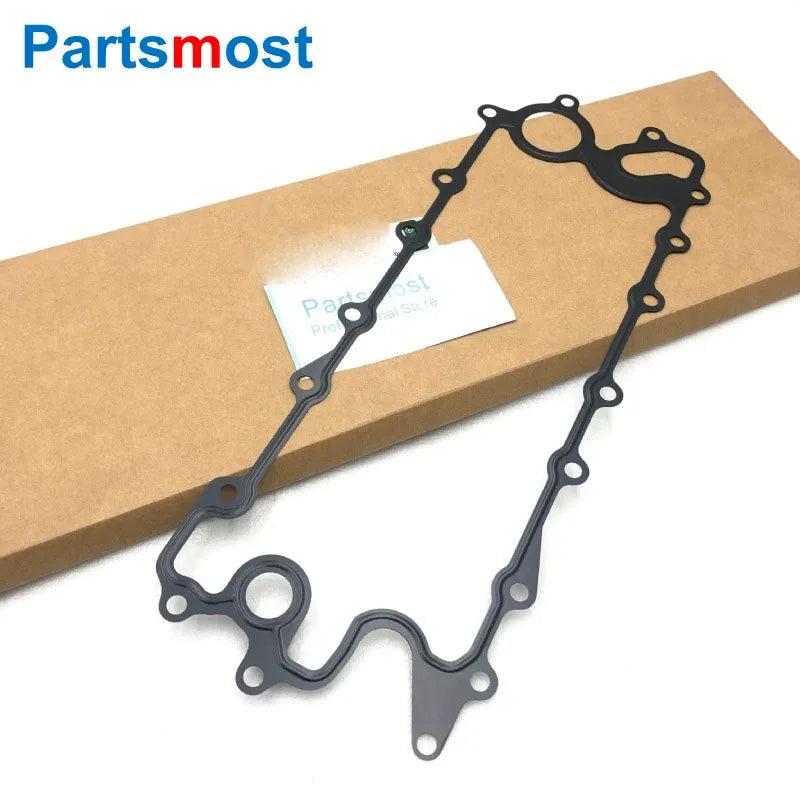

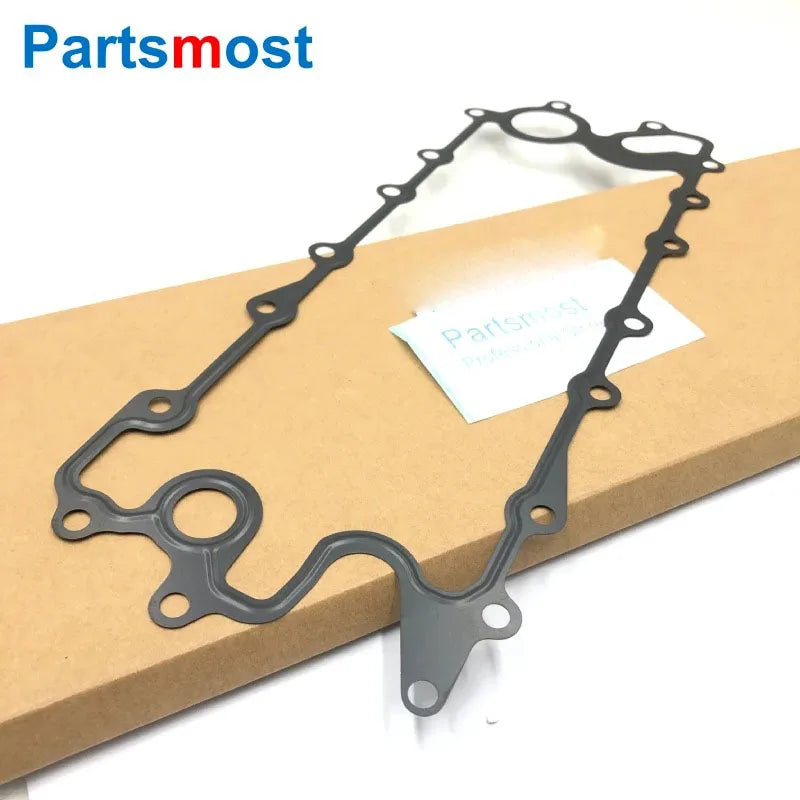

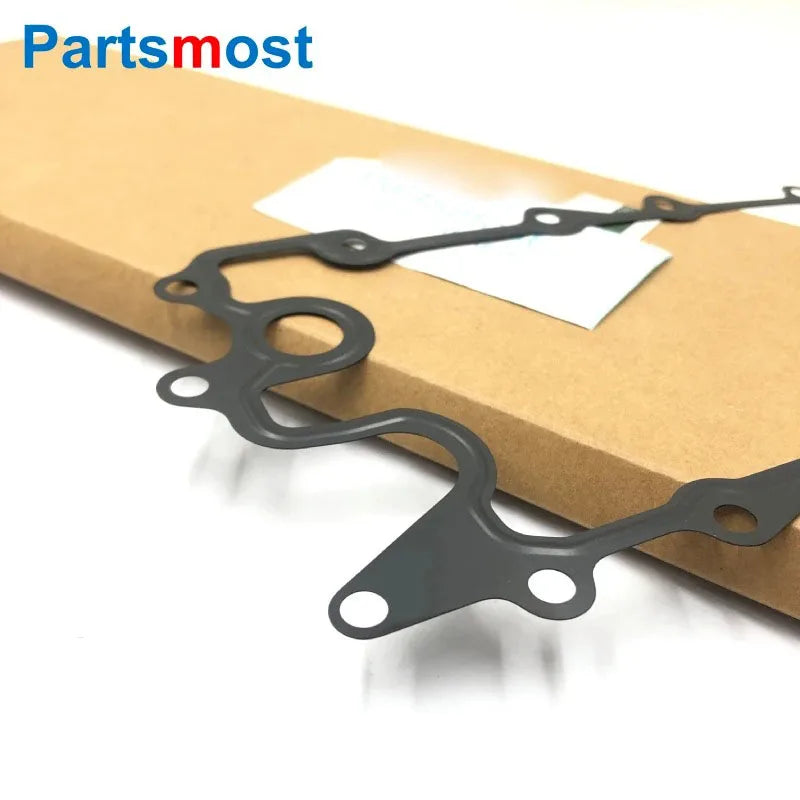

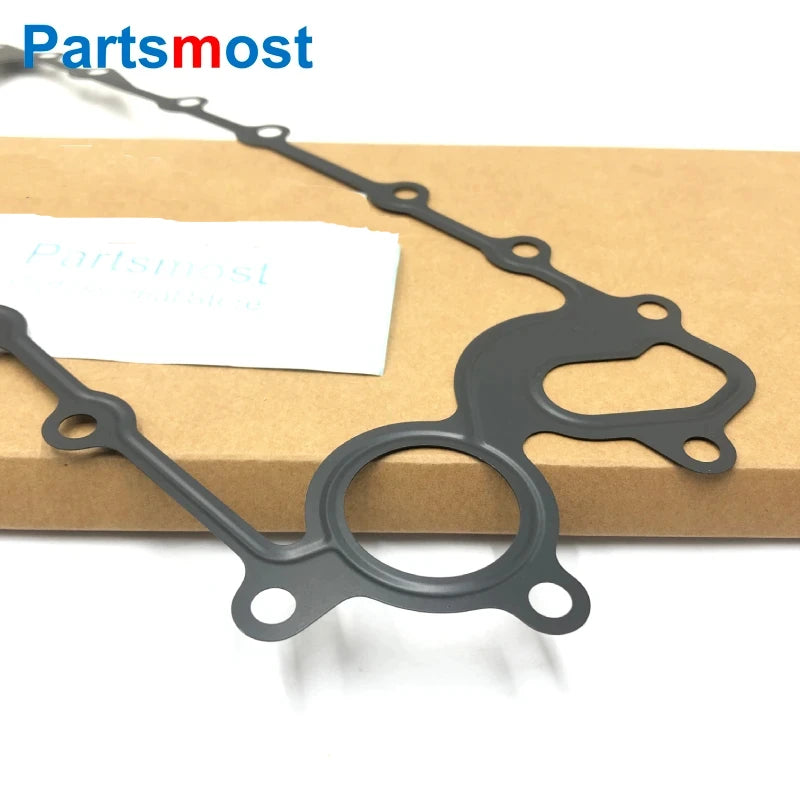

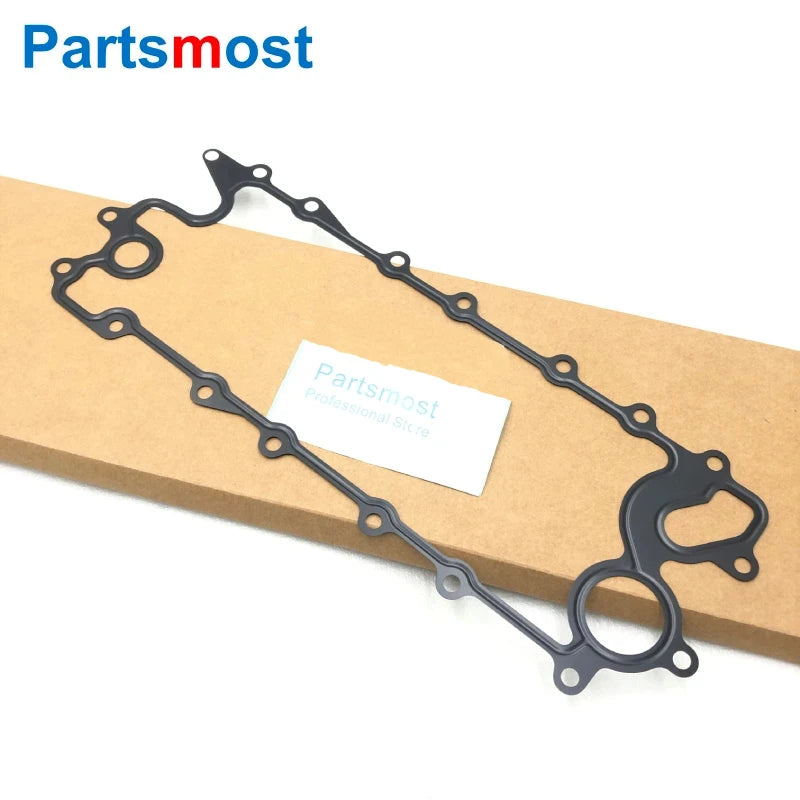

Oil Cooler Gasket – Land Rover & Range Rover
Factory-spec gasket seal for petrol V6 and V8 oil cooling systems. Direct replacement for Discovery, Range Rover, and Range Rover Sport.
LR010770 / AJ811904
2010–2022
Petrol V6 & V8
OEM Gasket
3.0L & 5.0L
Overview

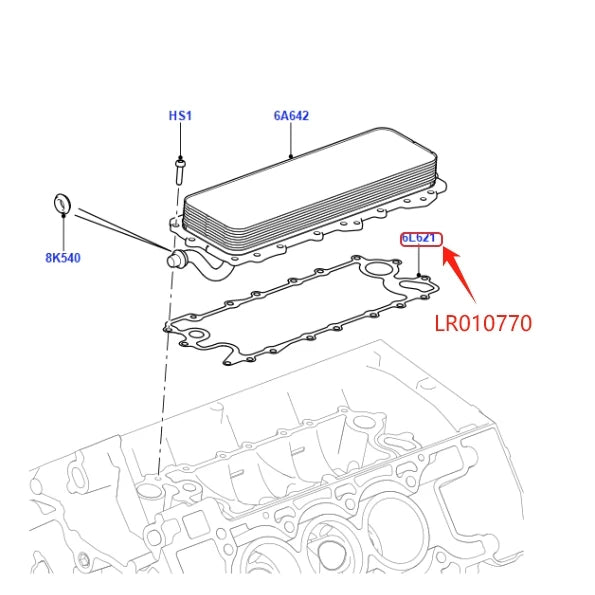

The oil cooler gasket is a critical sealing component in Land Rover and Range Rover cooling systems. It sits between the oil cooler and engine block, preventing pressurized oil leakage during operation. Over time, thermal cycling causes the factory rubber gasket to harden, crack, and weep—leading to loss of oil pressure, coolant contamination, and potential engine damage.
This replacement gasket meets OEM specifications and is manufactured to the same tolerances as the original part. It's suitable for Discovery 3 & 4, Discovery 5, Range Rover Vogue L405, Range Rover Sport L494, and Range Rover Velar equipped with 3.0L V6 TDV6 or 5.0L V8 petrol engines.
Installation requires no special tools and takes under an hour. The gasket comes new, pre-fitted to help prevent damage during handling, and includes a torque specification card to ensure proper sealing.
What's Included
🔧
Oil Cooler Gasket
OEM-equivalent rubber seal, LR010770
📋
Torque Specification Card
Correct fastener tightness guide
📦
Protective Packaging
Padded box, full UK courier tracking
✅
30-Day Money-Back Guarantee
Hassle-free returns, no questions asked
Why Choose This Gasket
- OEM part number match: LR010770 & AJ811904
- Manufactured to original specifications
- Prevents oil seepage and coolant mixing
- Thermal-resistant rubber compound
- Direct-fit, no modifications required
- Tested on V6 and V8 petrol powerplants
- Vacuum-sealed in original packaging
- Works with standard engine oil grades
- Restores cooling system integrity
- Reduces risk of air-lock in cooling circuit
Compatibility
| Vehicle Model |
Year Range |
Engine |
Fit |
| Discovery 3 |
2004–2009 |
3.0 V6 TDV6 |
Direct Fit |
| Discovery 4 |
2009–2014 |
3.0 V6 TDV6 |
Direct Fit |
| Discovery 5 |
2017–2022 |
3.0 V6 Petrol |
Direct Fit |
| Range Rover Vogue L405 |
2013–2020 |
5.0 V8 Petrol |
Direct Fit |
| Range Rover Vogue L405 |
2013–2020 |
3.0 V6 TDV6 |
Direct Fit |
| Range Rover Sport L494 |
2014–2021 |
3.0 V6 Petrol |
Direct Fit |
| Range Rover Sport L494 |
2014–2021 |
5.0 V8 Petrol |
Direct Fit |
| Range Rover Velar |
2018–2022 |
3.0 V6 Petrol |
Direct Fit |
| Range Rover Velar |
2018–2022 |
5.0 V8 Petrol |
Direct Fit |
| Jaguar XF / XJ (AJ811904) |
2009–2015 |
5.0 V8 Petrol |
Direct Fit |
Check your VIN: Cooling system configurations can vary by model year and market. If unsure of your exact fit, contact us on +44 203 943 9919 (Mon–Fri 9am–7pm) or send your 17-character VIN and we'll confirm compatibility in minutes.
Installation
Difficulty: Intermediate | Time: 45–60 minutes
-
Safety first: Allow engine to cool completely. Disconnect negative battery terminal.
-
Drain coolant: Open radiator drain plug (lower passenger side). Catch in approved container. Do not reuse.
-
Remove old gasket: Unbolt the oil cooler assembly (3–4 bolts). Carefully pry away from engine block using a plastic spoon. Remove old gasket and clean mating surfaces with lint-free cloth and isopropyl alcohol.
-
Install new gasket: Position new gasket on engine block mating surface. Align oil cooler mounting holes. Insert bolts hand-tight first.
-
Torque fasteners: Using the included card as reference, torque bolts to 25–28 Nm in a criss-cross pattern. Do not over-tighten.
-
Refill coolant: Fill radiator with fresh Land Rover Coolant (Motorcraft red, 50:50 mix). Bleed air from system by running engine at idle for 5 minutes with heater on.
-
Check pressure: Once cooled, pressure-test the cooling system to 1.4 bar. Monitor for leaks over first 30 minutes of running.
-
Reconnect battery: Reconnect negative terminal and start engine. Check for fault codes.
Disposal note: Used coolant is toxic. Take to a licensed waste facility or authorized Land Rover dealer. Never pour down drains.
Ready to Restore Your Cooling System?
Keep your Discovery, Range Rover Sport, and Range Rover running cool and leak-free. OEM-spec gasket, UK-stocked, lifetime guarantee on defects.
