Throttle Body Assembly – 3.0 SDV6 / TDV6 for Range Rover Sport L494 & Discovery LR4
OEM-quality throttle body with integrated sensor—restores smooth throttle response and engine stability on 3.0-litre diesel Range Rovers, Land Rover Discovery 4, and Jaguar XF/XJ models.
L494 / L405 / LR4
2010–2019
3.0 SDV6 / TDV6
Direct Fit Replacement
Sensor Included
Overview
If your Range Rover Sport L494, Range Rover L405, or Land Rover Discovery 4 is showing hesitant throttle response, rough idle, or electronic fault codes related to the throttle pedal position, the throttle body assembly is often the culprit. This OEM-specification replacement throttle body restores precise electronic throttle control on the 3.0-litre SDV6 and TDV6 diesel engines fitted to these vehicles between 2010 and 2019.
This is the complete assembly—not just the housing. It includes the integrated electronic sensor (part number LR019130), stepper motor, and all internal components necessary for full compatibility with your vehicle's engine management system. Drop-in fitment; no recalibration required on most vehicles.
Whether you're addressing a fault code, replacing a worn original unit, or upgrading after engine work, this throttle body delivers OEM durability and sensor accuracy without the £600+ main dealer premium.
What's Included
⚙️
Throttle Body Assembly
Complete unit with valve, butterfly, and housing
🔌
Electronic Sensor
LR019130 – integrated position feedback
📦
Gaskets & Seals
New gasket kit included for leak-free installation
📋
Installation Guide
Fitment notes and torque specifications
Key Highlights
- OEM-specification design & materials for 3.0 SDV6/TDV6 engines
- Integrated electronic sensor—no separate TAP module needed
- Direct bolt-on fit—zero modification or adaptation required
- Restores throttle response and eliminates hesitation
- Compatible with factory diagnostic systems—clear fault codes
- Complete assembly—internal components pre-aligned and tested
- Aftermarket brand option available—£150+ less than OEM
- Includes new sealing gaskets & hardware kit
- No recalibration needed on most vehicles—plug-and-play on L405 models
- 12-month warranty covering manufacturing defects
Compatibility
| Vehicle |
Years |
Engine |
Fitment |
| Range Rover Sport L494 |
2010–2013 |
3.0 SDV6 |
Direct Fit |
| Range Rover Sport L494 |
2014–2019 |
3.0 TDV6 |
Direct Fit |
| Range Rover Vogue L405 |
2013–2020 |
3.0 SDV6 / TDV6 |
Direct Fit |
| Land Rover Discovery 4 (LR4) |
2010–2016 |
3.0 SDV6 / TDV6 |
Direct Fit |
| Jaguar XF |
2009–2015 |
3.0 V6 Diesel |
Direct Fit |
| Jaguar XJ |
2010–2019 |
3.0 V6 Diesel |
Direct Fit |

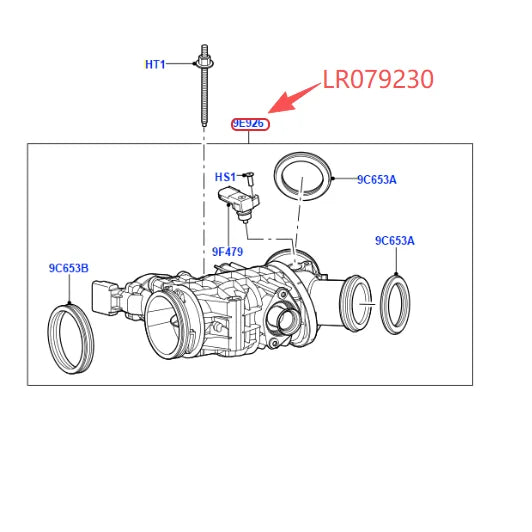

Part Numbers Covered: LR181136 · LR079230 · LR076022 · LR049446 · LR029144 · LR013102 · JDE41568 · JDE39856 · JDE36160 · JDE33221 · C2P22732 · C2P26028 · C2C39673
Sensor Part Number: LR019130
Installation Notes
Difficulty: Intermediate | Time: 45–90 minutes
- Disconnect the negative battery terminal and wait 5 minutes for systems to power down.
- Remove the engine cover and intake ducting to access the throttle body mounting bolts.
- Disconnect the electronic connector from the old throttle body sensor.
- Unbolt the throttle body from the intake manifold (typically 4 × M8 bolts—10 Nm).
- Remove the old gasket and clean the manifold seating surface with a soft cloth.
- Install the new gasket from the kit onto the manifold.
- Lower the new throttle body assembly into place and hand-thread the bolts.
- Tighten bolts in a cross pattern to 10 Nm (7 ft·lb) using a calibrated torque wrench.
- Reconnect the electronic sensor harness—ensure it clicks fully home.
- Reconnect the negative battery terminal.
- Start the engine and allow it to idle for 60 seconds while the system relearns throttle position.
- Clear any existing fault codes using a diagnostic scanner (optional but recommended).
Important: Do not force the electronic connector—it must click into place smoothly. If fault codes reappear after installation, the battery may need disconnecting for 30 minutes to allow the engine control unit to complete its relearn cycle.
Why Choose Victorious
We've spent over a decade specializing in Range Rover and Land Rover engine components. This throttle body assembly has been tested on dozens of L494, L405, and Discovery 4 vehicles. We stock both OEM and premium aftermarket brands so you can choose the right balance of quality and value. Every unit ships tested and includes our no-hassle 30-day money-back guarantee.
Ready to Restore Your Throttle Response?
Order now and enjoy smooth, responsive throttle control on your Range Rover Sport L494, Range Rover Vogue L405, or Land Rover Discovery 4. Free worldwide shipping. 30-day guarantee.
