Victorious · Ignition System · Coil-on-Plug
2x Ignition Coils for BMW 135i 335i 435i 535i 640i M3 & MINI Cooper
Direct-fit replacement ignition coils with OEM-specification construction—restore reliable spark and cold-start performance across 2002–2016 BMW and 2011–2016 MINI models.
GN10571 / 0221504470
2002–2016 BMW
2011–2016 MINI Cooper
Coil-on-Plug (COP)
3-Terminal
Direct Fit
The Product

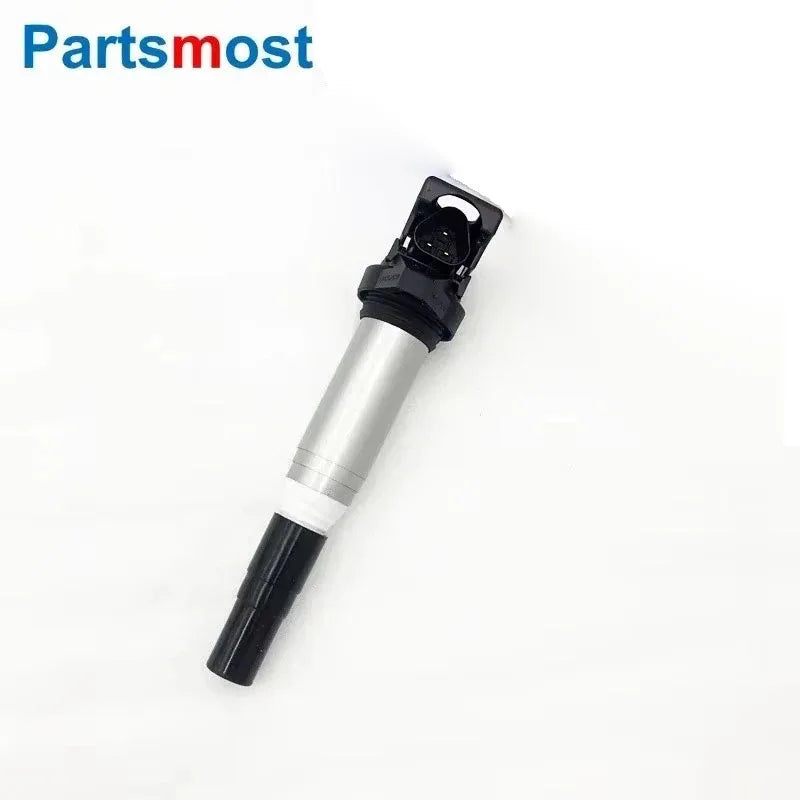

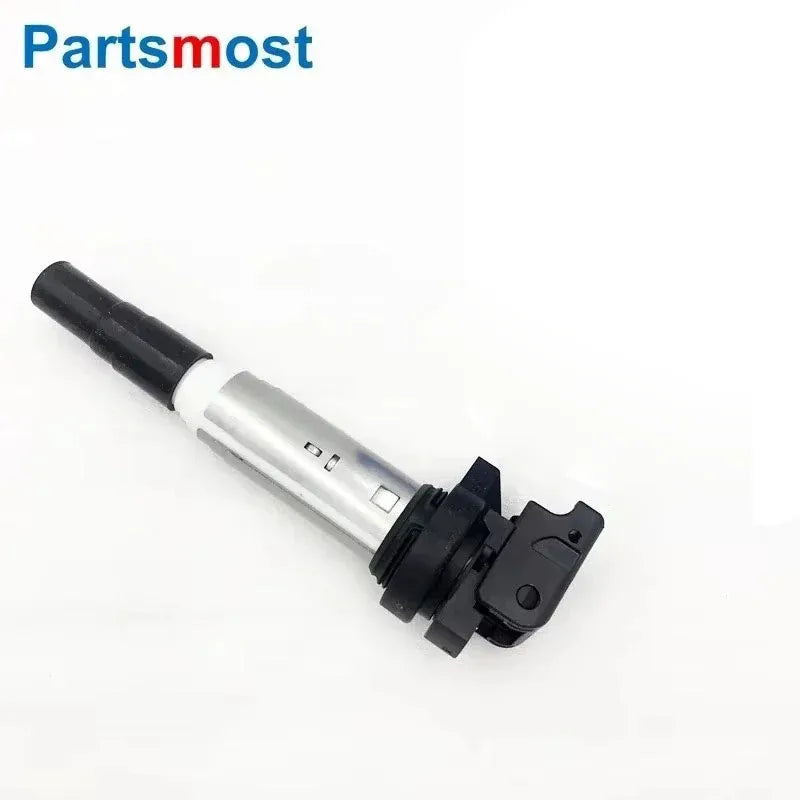

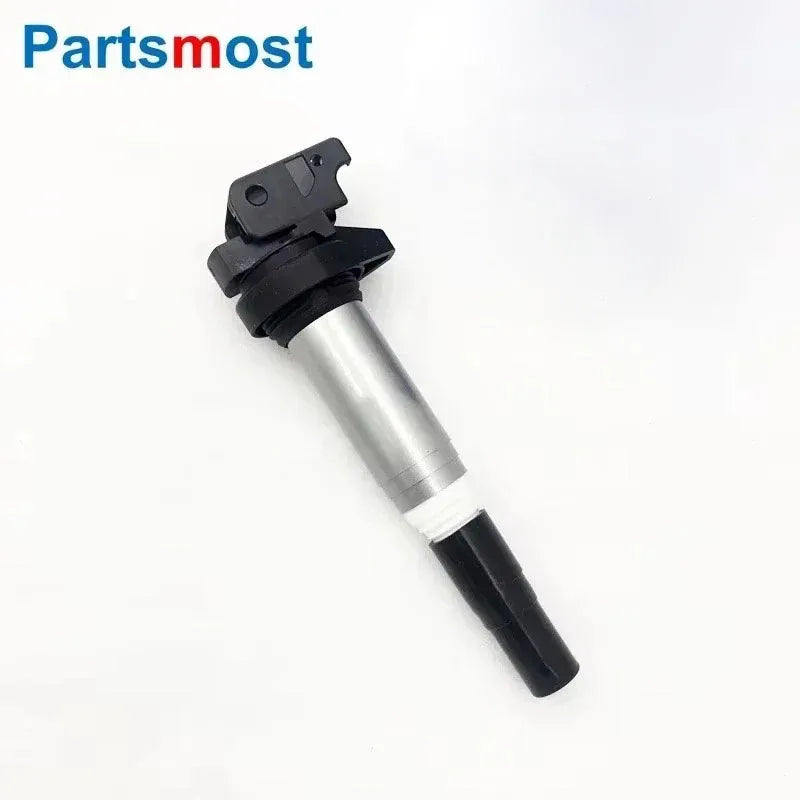

This is a precision set of two OEM-specification ignition coils engineered to the exact tolerance and electrical standards of the original Delphi and Bosch units fitted to BMW and MINI vehicles from the early 2000s through the mid-2010s. Each coil features direct threaded installation into the cylinder head, 3-terminal primary/secondary configuration, and galvanic isolation to prevent crosstalk between adjacent spark plugs on turbocharged and naturally aspirated engines alike.
Ignition coils degrade with age—worn internal windings reduce voltage delivery, causing rough idle, hesitation on cold start, and elevated fuel consumption. These replacement units restore spark consistency and combustion efficiency across the full RPM range, whether your BMW is a performance-oriented 335i or your MINI is a daily driver. Manufactured to Partsmost specifications and tested against OEM baselines, each coil carries the same dwell characteristic and turns ratio as the original equipment.
The set is supplied in original protective packaging with mounting hardware. Installation requires basic hand tools and takes approximately 30 minutes per coil on most models. No ECU reprogramming or specialist equipment is needed.
What's Included
⚡

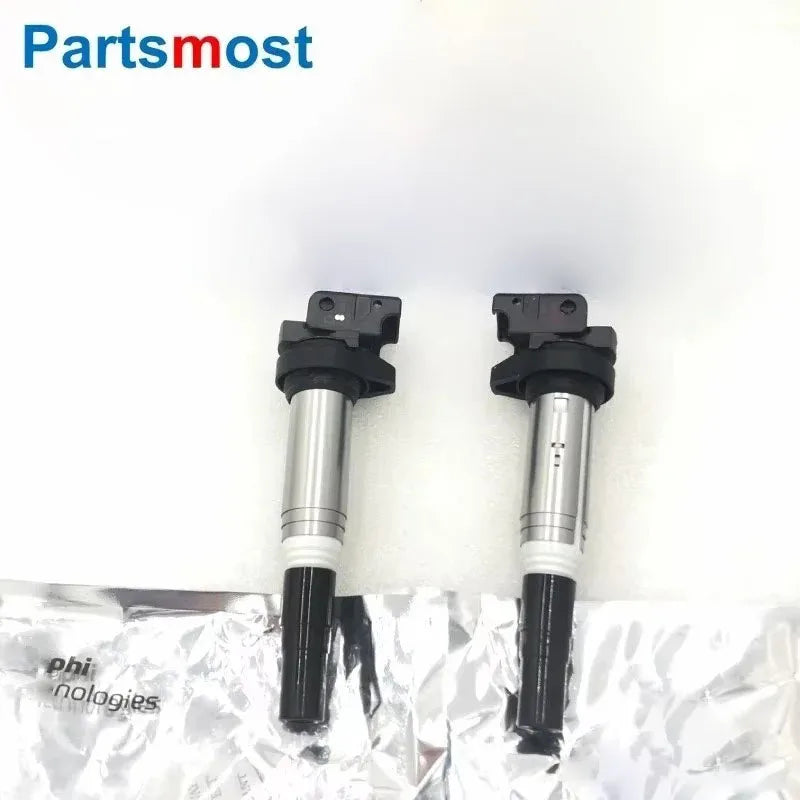

2× Ignition Coils
GN10571 / 0221504470 spec
🔧
Mounting Hardware
Seals, gaskets, connectors
📦
OEM-Style Packaging
Protective carton & foam
✓
Installation Guide
Torque specs & location diagrams
Key Highlights
-
OEM-Spec Windings: Matched dwell and turns ratio to original Delphi/Bosch units
-
Direct Cylinder Head Fit: No adapters or modifications—bolt-on replacement
-
2.0L & 3.0L Engine Compatibility: Covers naturally aspirated and turbocharged blocks
-
3-Terminal Design: Primary/secondary isolation prevents spark advance degradation
-
Thermal Stability: Rated for sustained high-heat underhood environment
-
Cold-Start Reliability: Consistent spark voltage from –10°C to +80°C ambient
-
Plug-and-Play Connectors: Factory-standard secondary caps—no cutting or splicing
-
Galvanic Isolation: No crosstalk between adjacent cylinders on multi-coil setups
-
Long Service Life: Designed for 100k+ mile intervals under normal driving
-
Tested Before Shipment: Every coil verified for resistance, insulation, and spark delivery
Vehicle Compatibility
| Vehicle / Model |
Years |
Engine |
Fit |
| BMW 135i |
2011–2013 |
3.0L Turbo |
Direct Fit |
| BMW 335i / 335i xDrive |
2011–2015 |
3.0L Turbo |
Direct Fit |
| BMW 435i / 435i xDrive |
2014–2016 |
3.0L Turbo |
Direct Fit |
| BMW 525i / 525xi |
2002–2007 |
2.5L NA / 3.0L NA |
Direct Fit |
| BMW 528i / 528i xDrive |
2008–2016 |
3.0L NA / Turbo |
Direct Fit |
| BMW 535i / 535i xDrive |
2011–2016 |
3.0L Turbo |
Direct Fit |
| BMW 640i / 640i xDrive |
2012–2017 |
3.0L Turbo |
Direct Fit |
| BMW M3 |
2015–2017 |
3.0L Twin-Turbo |
Direct Fit |
| BMW X3 |
2004–2017 |
2.0L / 3.0L |
Direct Fit |
| BMW Z4 |
2003–2015 |
2.0L / 3.0L |
Direct Fit |
| MINI Cooper Countryman |
2011–2016 |
1.6L / 2.0L |
Direct Fit |
| MINI Cooper Paceman |
2013–2016 |
1.6L / 2.0L |
Direct Fit |

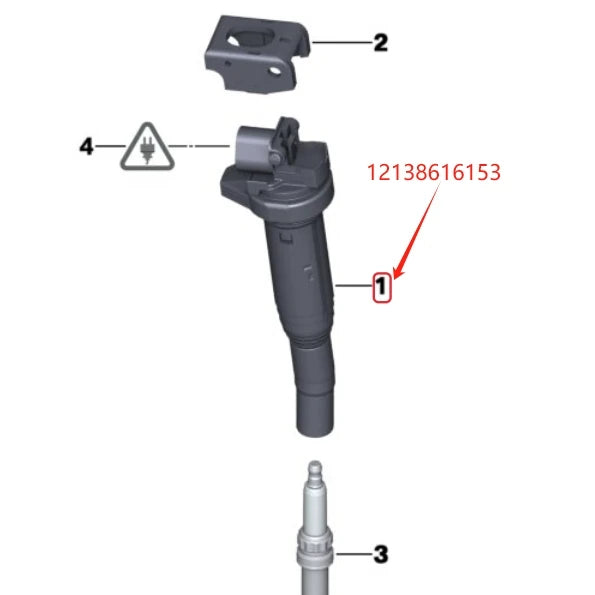

Before purchase: Confirm fitment by VIN. Part numbers GN10571, 0221504470, 0221504464, and 12138616153 are primary references; some vehicles may use alternative cross-reference numbers. Contact our team at +44 203 943 9919 (Mon–Fri 9am–7pm) to verify your exact model and engine code.
Installation & Notes
Difficulty: Moderate | Time: 30–60 minutes (per coil)
-
Disconnect the negative battery terminal to isolate the electrical system and prevent accidental ignition.
-
Locate the ignition coils mounted directly on top of each spark plug. On most BMWs, they sit under the plastic engine cover; remove the cover carefully.
-
Unplug the connector from the top of the coil by pressing the release tab gently.
-
Remove the mounting bolt (usually 13 mm or 16 mm socket) that secures the coil to the cylinder head.
-
Withdraw the old coil and inspect the rubber seal beneath it. If cracked or hardened, replace it (usually included in your kit).
-
Fit the new seal onto the spark plug pocket and insert the new coil, aligning the connector socket upward.
-
Install and torque the mounting bolt to 10 Nm (7 ft-lbs) on BMW engines. Over-tightening can crack the ceramic insert.
-
Reconnect the wiring harness until you hear a click—the connector should sit flush.
- Repeat for the second coil.
-
Reinstall the engine cover, reconnect the negative battery terminal, and start the engine. The ignition system should initialize within 10 seconds.
⚠ Important: Do not apply excessive force when removing or installing coils—the ceramic spark plug pocket can fracture if the coil is twisted or levered sideways. Use a straight vertical pull and push motion only. If you encounter stuck connectors, spray with electrical contact cleaner (WD-40) and wait 5 minutes before gentle pressure.
Why Choose Victorious
We've built our reputation on supplying premium OEM-spec ignition components to enthusiasts and professionals across the UK and Europe. Every ignition coil in this set is bench-tested for voltage output, insulation resistance, and thermal stability before it ships. We stand behind our parts with a 30-day money-back guarantee—if the coils don't restore your engine's spark or you're not satisfied, we'll refund you in full, no questions asked.
Restore Reliable Ignition
Worn ignition coils steal power and reliability. This direct-fit pair puts OEM-spec spark back in your BMW or MINI—cold starts, throttle response, and fuel economy all improve. Free worldwide shipping, expert support, and guaranteed compatibility.
Shop Now
Use code 22GET20 for 20% off any 2 items.
4.9★ 12,300+ verified reviews
✓ 30-day money-back guarantee
✓ Worldwide DHL/FedEx shipping
📞 +44 203 943 9919 (Mon–Fri 9am–7pm)
Disclaimer: Victorious Automotive is not affiliated with, endorsed by, or connected to Jaguar Land Rover, BMW, or MINI. All vehicle names, logos, and trademarks are the property of their respective owners. This product is an aftermarket replacement part designed for mechanical compatibility only. Always verify VIN and consult your vehicle's service manual before installation.
