Victorious · TDV6 Engine · Drive Belt System
3.0L TDV6 Diesel Alternator Drive Belt, Tensioner & Pulley Kit
OE-specification engine belt system for Range Rover, Discovery, and Range Rover Sport diesel models—genuine fitment, extended durability, one-kit solution.
L405 | L494 | L550 | L538
2013–2022
3.0 TDV6 Diesel
OE Part Numbers
Direct Fit
Engineered for 3.0L Diesel Performance
The Range Rover, Range Rover Sport, and Discovery are among the most capable diesel-powered SUVs on the market—but their 3.0L TDV6 engines demand precise component compatibility. Your drive belt system is critical: it powers the alternator, water pump, and auxiliary systems under extreme load and temperature cycling.
This three-component kit pairs OE-spec belt (LR035502), tensioner (LR035493), and 70mm idler pulley (LR036304) to restore factory efficiency, charging consistency, and engine cooling. Whether you're replacing a worn belt or upgrading all three components together, each part is engineered to Land Rover's exact tolerances—no compromises.
Partsmost supplies this kit as individual pieces or as a complete assembly, allowing you to replace only what you need or rebuild the entire system in one service interval. Backed by a 1-year warranty and 30-day money-back guarantee, this is the toolkit for owners who refuse component mismatches.

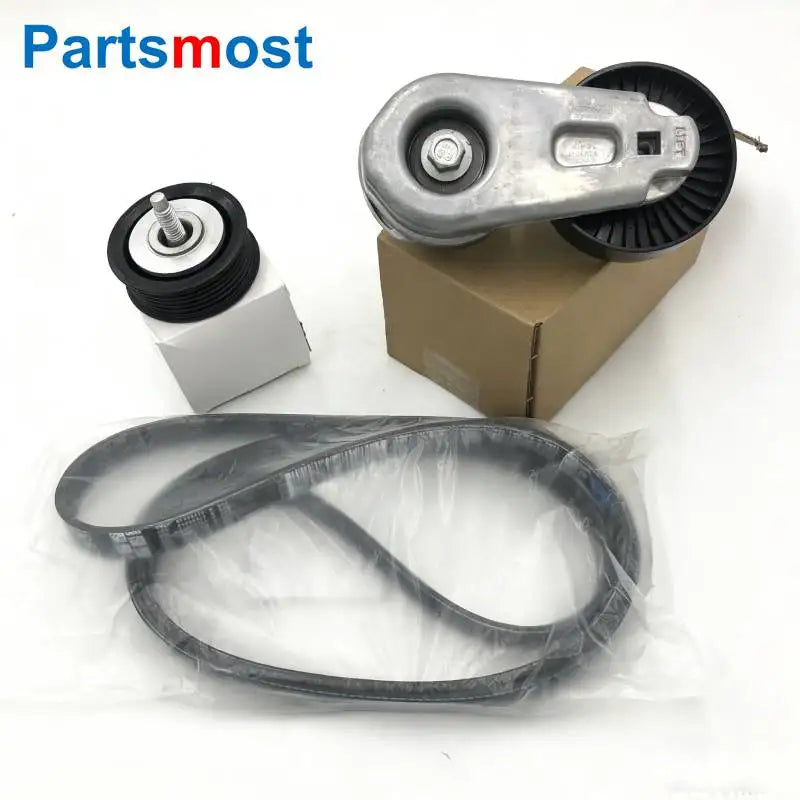

What's Included
🔗
Drive Belt

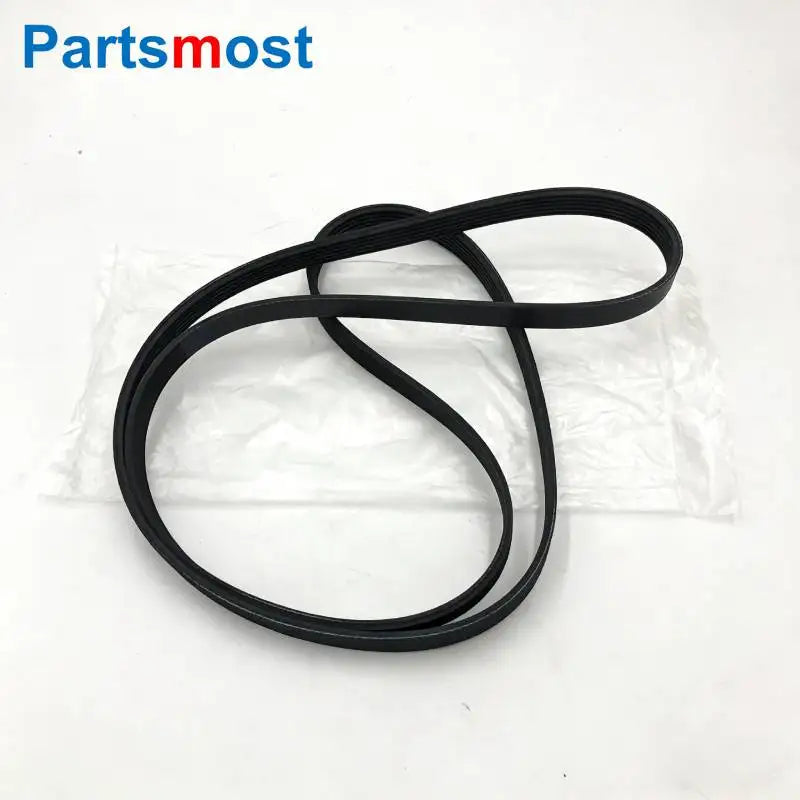

LR035502 – OE tension, multi-groove serpentine belt
⚙️
Belt Tensioner

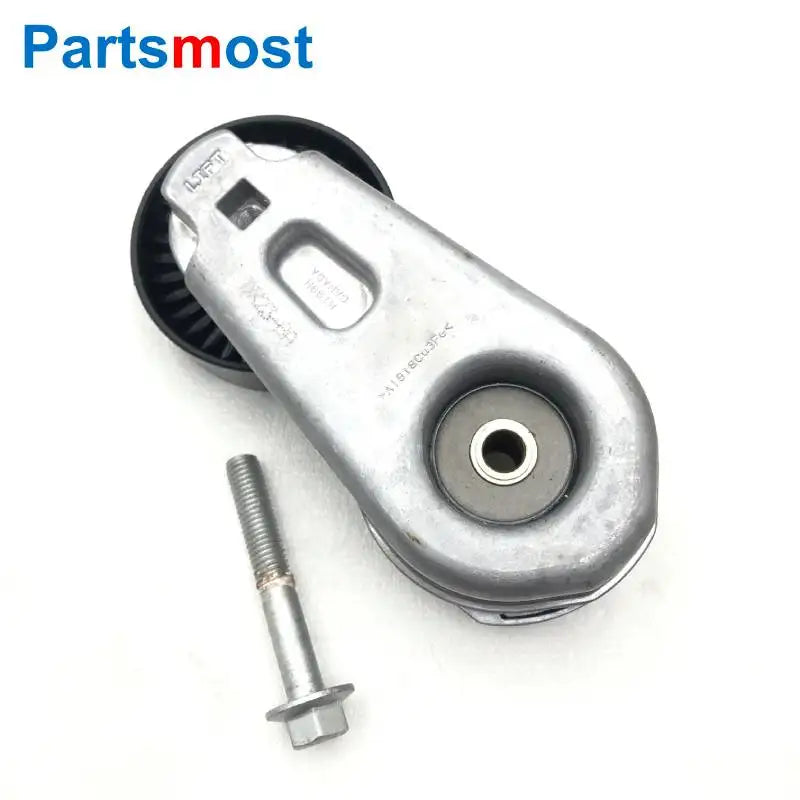

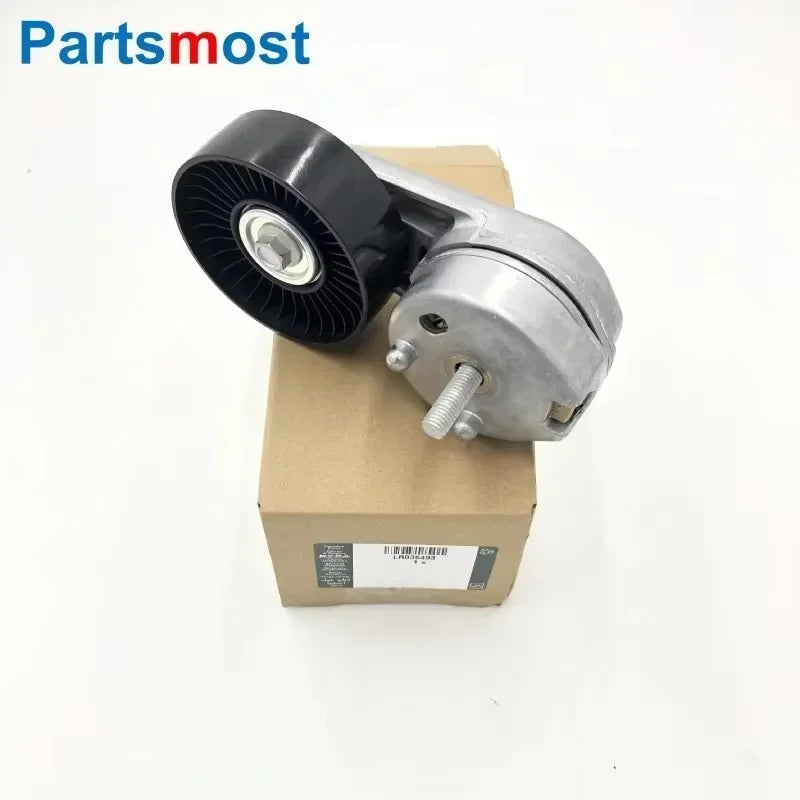

LR035493 – Hydraulic damping, factory spring rate
◯
Idler Pulley

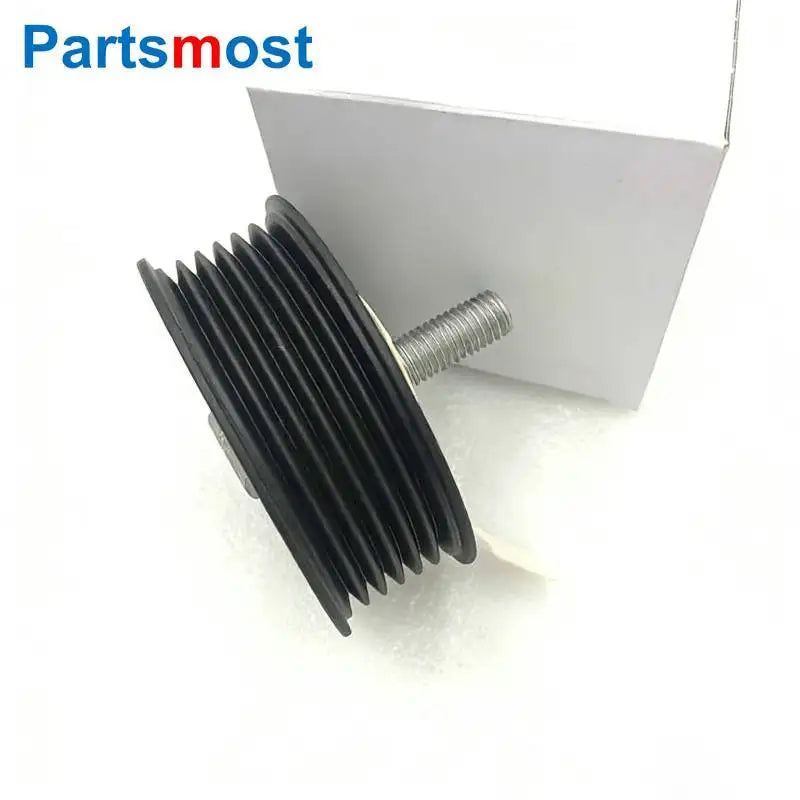

LR036304 – 70mm diameter, sealed bearing, aluminum hub
📋
Installation Guide
Laminated reference card with torque specs and timing marks
Product Highlights
- OE part numbers verified for Range Rover L405 (2013–), Range Rover Sport L494 (2013–2020), Discovery 4 & 5
- 3.0L TDV6 24-valve diesel engines only—not compatible with petrol variants
- Belt: Multi-groove serpentine design, OE rubber compound, rated for 120,000+ km service life
- Tensioner: Hydraulic damping spring, factory spring rate, sealed against contamination
- Pulley: 70mm aluminum hub, sealed ball bearing, swaged onto stainless steel stub axle
- Material: Rubber, metal, and polypropylene composites—no substitutes or recycled materials
- Front-mounted installation, cold side of engine bay—accessible without major disassembly

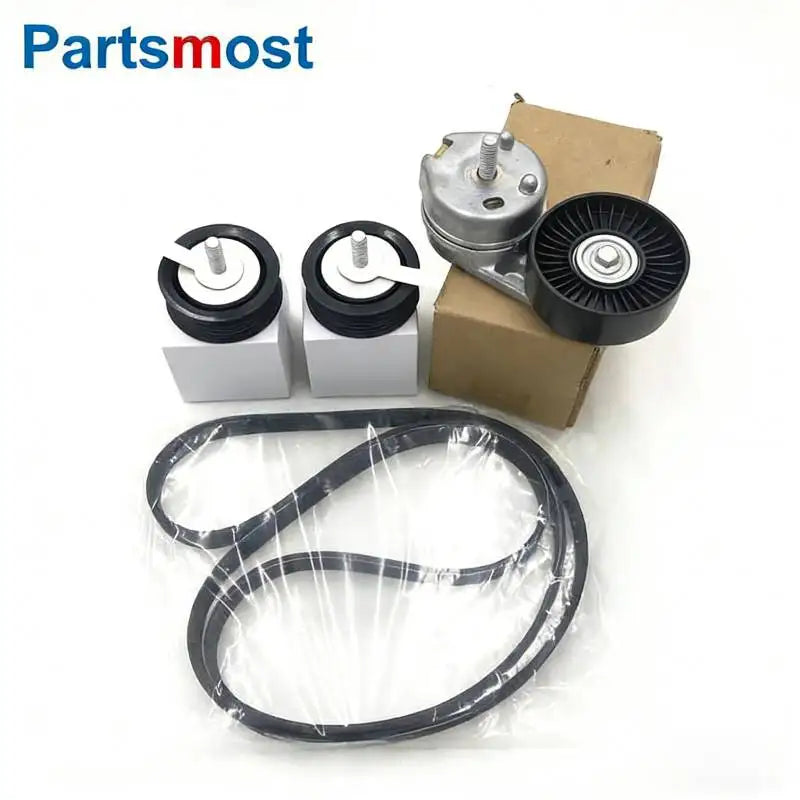

- Kit options: Individual components or 3-piece bundle, or 4-piece (two pulleys for redundancy)
- 1-year manufacturer warranty against defects; covered under Victorious 30-day money-back guarantee
- Partsmost brand aftermarket—OE-equivalent quality at competitive pricing
Compatibility Chart
| Model |
Years |
Engine |
Belt (LR035502) |
Tensioner (LR035493) |
Pulley (LR036304) |
| Range Rover Vogue |
2013–2021 |
3.0L TDV6 |
✓ Direct Fit |
✓ Direct Fit |
✓ Direct Fit |
| Range Rover Sport |
2013–2020 |
3.0L TDV6 |
✓ Direct Fit |
✓ Direct Fit |
✓ Direct Fit |
| Range Rover Sport |
2014–2022 |
3.0L TDV6 |
✓ Direct Fit |
✓ Direct Fit |
✓ Direct Fit |
| Land Rover Discovery 4 |
2010–2016 |
3.0L TDV6 |
⊗ Belt only |
✓ Direct Fit |
⊗ Not compatible |
| Land Rover Discovery 5 |
2017–2022 |
3.0L TDV6 |
✓ Direct Fit |
✓ Direct Fit |
✓ Direct Fit |
| Range Rover Velar |
2017–2022 |
3.0L TDV6 |
⊗ Check fitment |
✓ Direct Fit |
✓ Direct Fit |
| Land Rover Defender |
2020–2024 |
3.0L TDV6 |
⊗ Not compatible |
⊗ Not compatible |
✓ Direct Fit |
Note: Always confirm your vehicle's exact model year and engine code (TDV6 vs. petrol V6/V8) before ordering. Contact us with your VIN for free fitment verification.
Installation Guide
Difficulty: Intermediate | Time: 45–60 minutes
-
Preparation: Disconnect negative battery terminal. Allow engine to cool for at least 30 minutes. Remove plastic undertray and release belt tension by loosening tensioner bolt (counter-clockwise).
-
Belt Removal: Slide old belt off all pulleys—note routing diagram on hood underside or radiator shroud. Take photograph before removal for reference.
-
Pulley Inspection: Check crankshaft, water pump, and idler pulley for wear grooves, cracks, or bearing play. If pulley races, replace simultaneously.
-
Tensioner Replacement (if needed): Unbolt tensioner mounting bracket from engine block. Drain hydraulic fluid into container. Install new tensioner, torque to 25 Nm, refill if required.
-

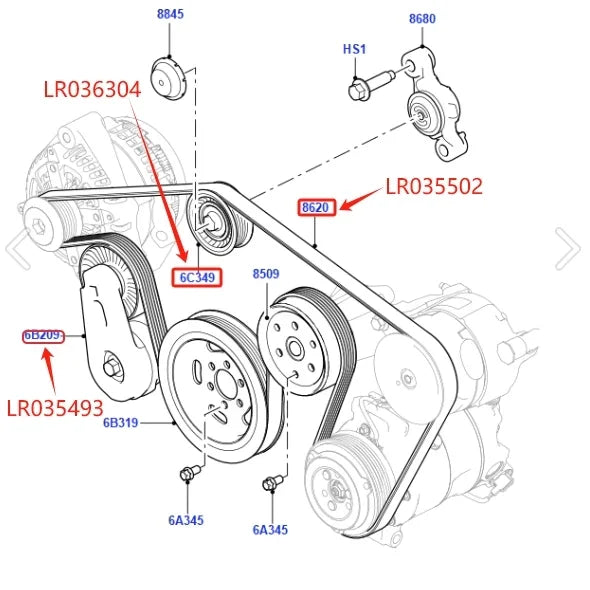

Belt Installation: Route new belt following factory diagram. Start at crankshaft pulley, weave across alternator, tensioner, and water pump. Leave 1–2 cm slack at tensioner before final tightening.
-
Tensioning: Turn tensioner bolt clockwise until belt exhibits 10 mm deflection under thumb pressure at midpoint. Tighten bolt to factory specification (typically 45 Nm).
-
Rotation Test: Manually rotate engine 2–3 complete revolutions by hand. Confirm belt tracks straight, no rubbing on guards or mounting points.
-
Final Check: Reconnect battery. Start engine, listen for squealing or grinding. Run 5 minutes at idle, then shut down and re-inspect belt tension cold.
⚠️ Important: Do not over-tension the belt—this accelerates tensioner and pulley bearing failure. Under-tension causes slipping and alternator undercharging. If uncertain, use a belt tension gauge (typical spec: 110–130 N on TDV6 engines) or consult a Land Rover specialist.
Ready to Restore Engine System Reliability?
Complete your 3.0L TDV6 belt maintenance with OE-spec components, verified fitment, and Victorious support. Whether it's a single belt replacement or a full system rebuild, this kit keeps your alternator charged, engine cool, and power steering responsive—no matter the terrain.
