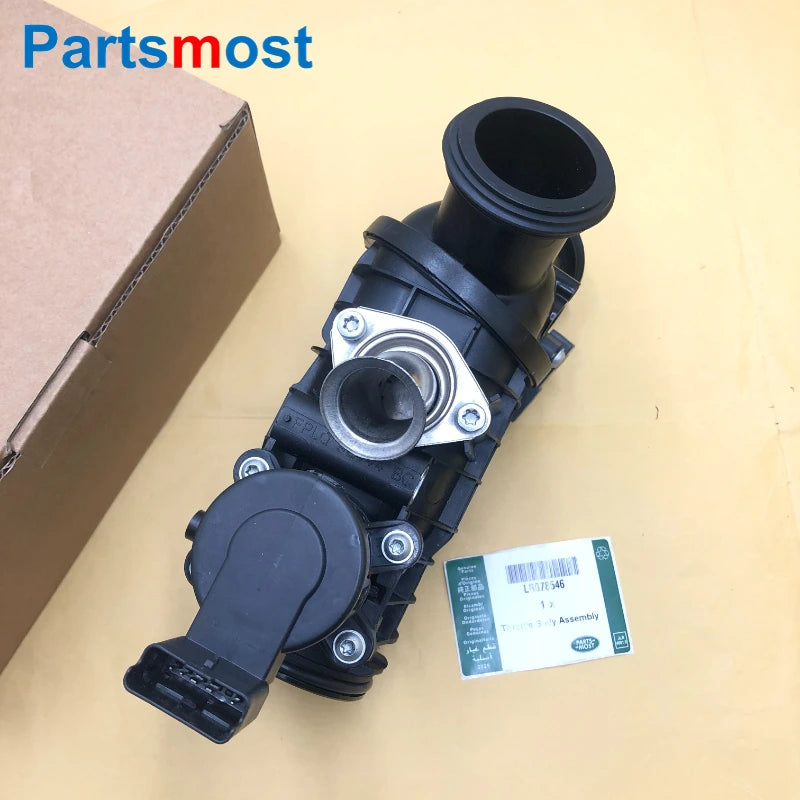

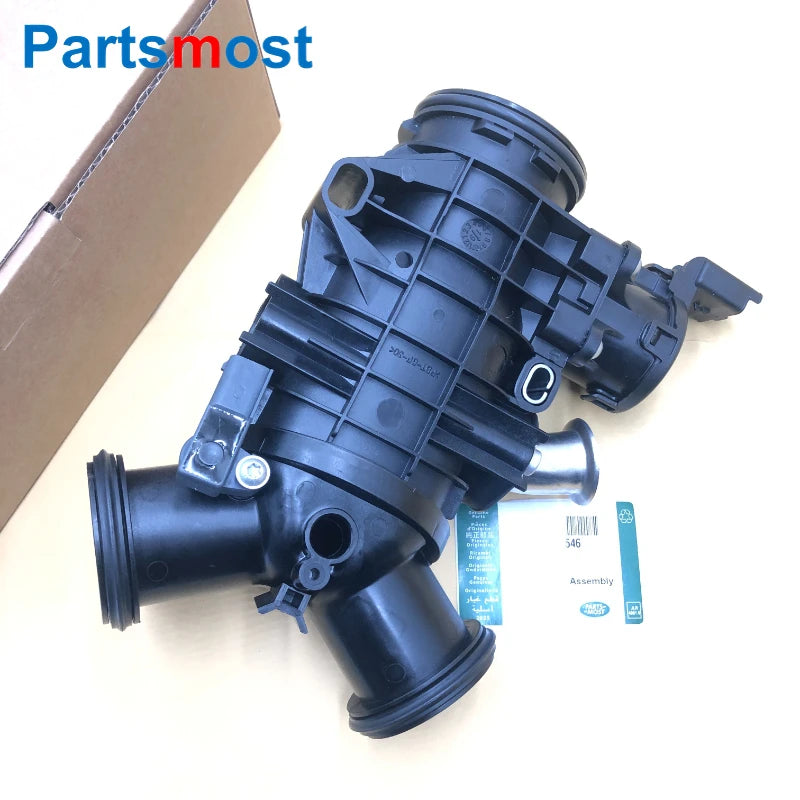

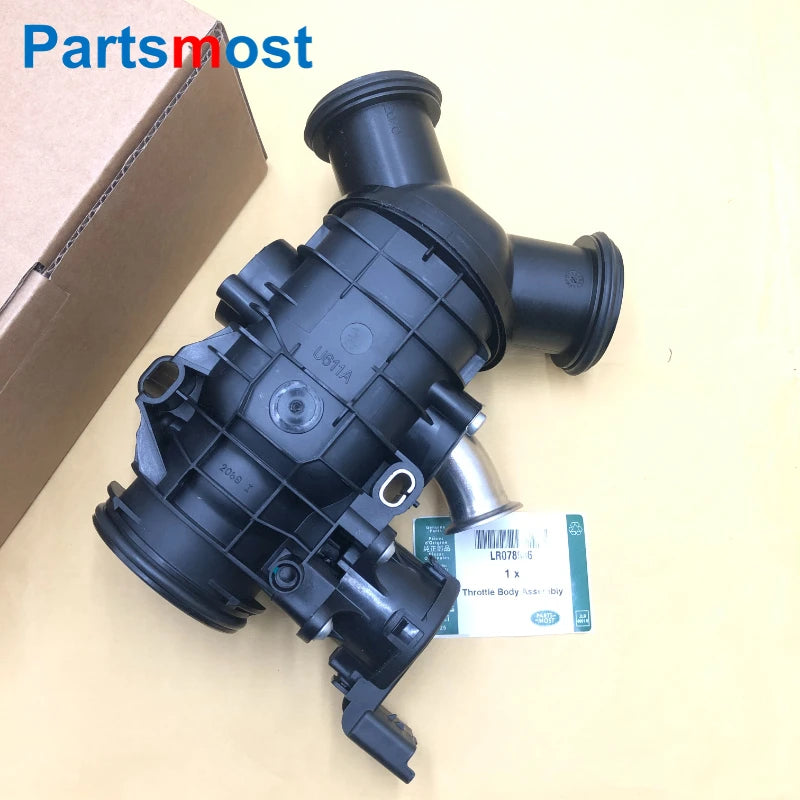

3.0L V6 Diesel Throttle Body Housing & Motor
Factory-spec throttle body assembly with integrated motor and sensor for 3.0L V6 diesel powerplants across Range Rover Sport, Range Rover Velar, Discovery, and Jaguar platforms.
L494 / L494E
L560 / L561
L550
2015–2022
OEM-Spec
Direct Replacement
Vehicle Application
This throttle body housing and motor assembly is engineered for Land Rover's premium 3.0L V6 diesel engine family, serving as the critical intake control valve across a broad range of performance and luxury SUVs.
Compatible Range Rover & Land Rover Models:
- Range Rover Sport (L494) 2015–2022
- Range Rover Velar (L560) 2017–2023
- Range Rover Vogue (L405 TDV6) 2013–2020
- Land Rover Discovery 5 (L550) 2017–2023
- Jaguar XF / XJ (TDV6 variants)
The throttle body regulates intake air volume to the diesel engine, working in concert with the engine control module (ECM) to optimize fuel injection timing, emission control, and power delivery across all driving conditions.
What's Included
⚙️

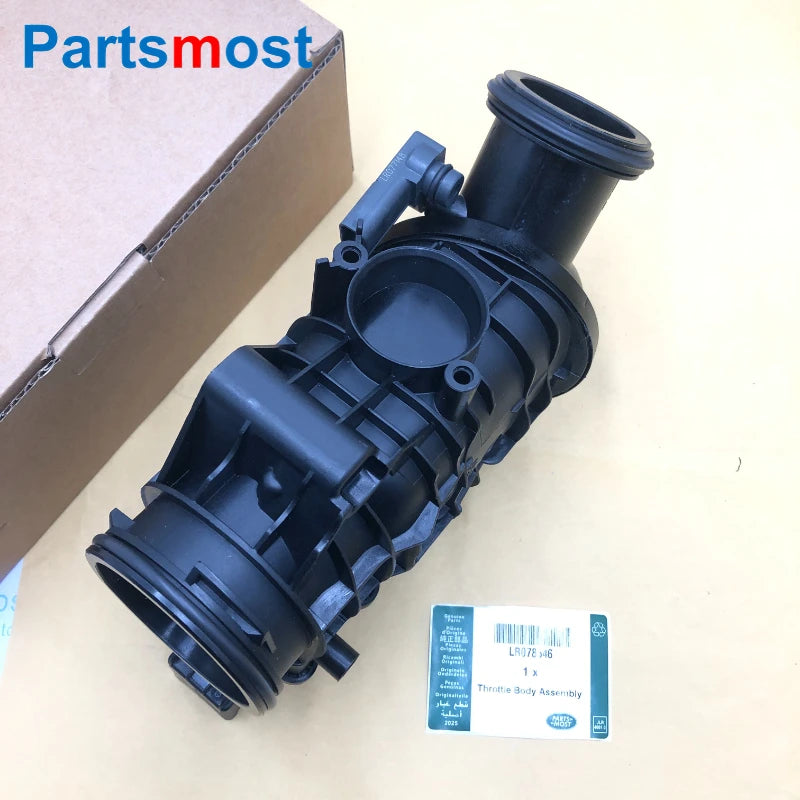

Throttle Body Housing
Cast aluminium body with integrated intake valve
🔌
Electric Motor Assembly
Stepper motor with factory calibration
📡

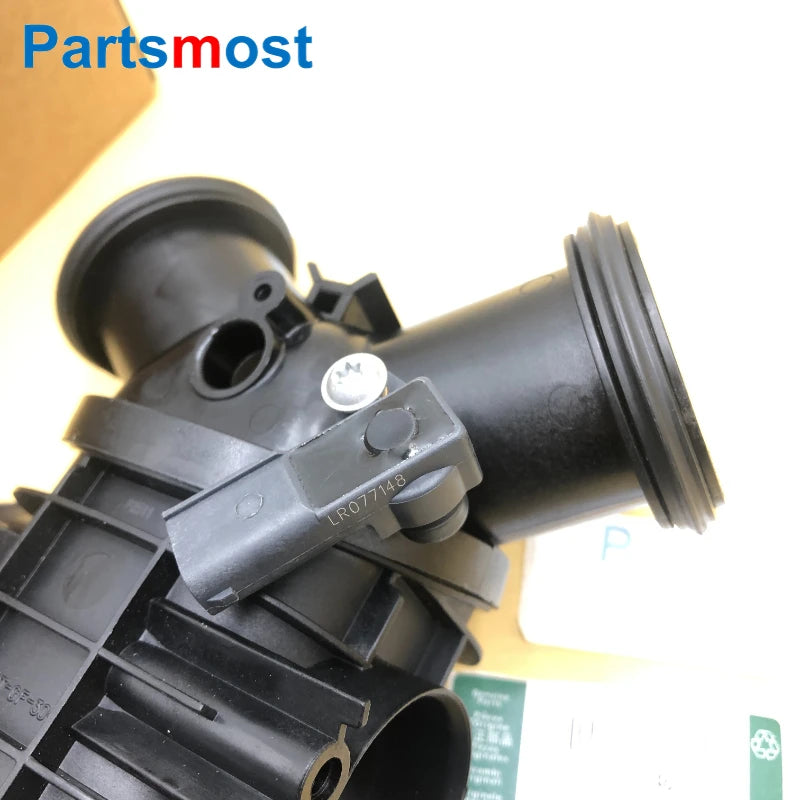

Position Sensor (LR077148)
Integrated potentiometric feedback sensor
⚡

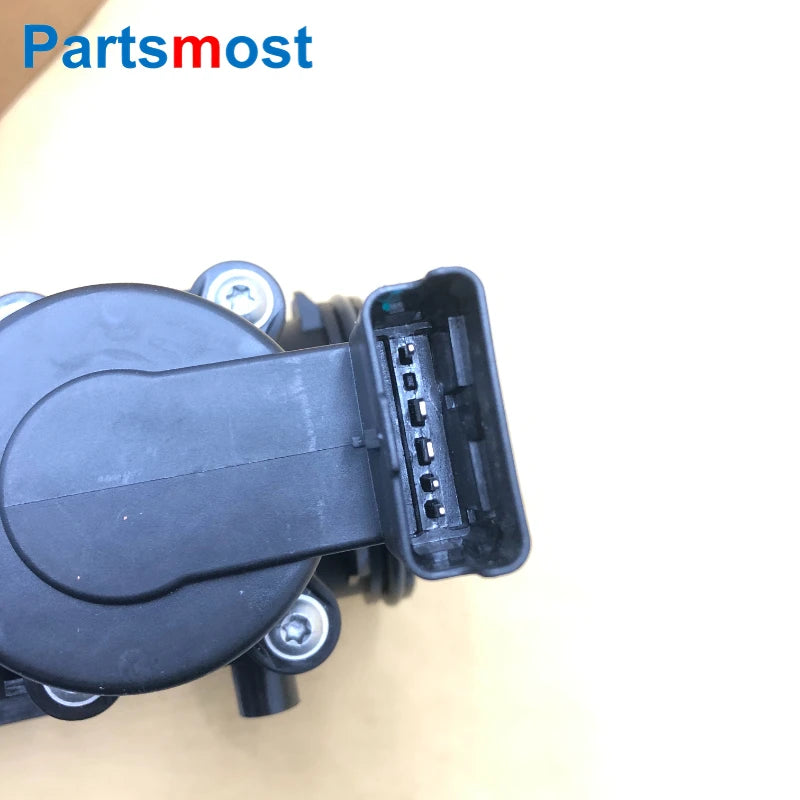

Pre-Assembled Harness
OEM-type electrical connector, ready to fit
Key Highlights
- Factory-spec engineering meets OEM part numbers LR078546 and JDE39855
- Direct plug-and-play replacement—no ECM coding required
- Integrated stepper motor delivers precise intake valve positioning
- Position sensor feedback ensures real-time ECM communication
- Cast aluminium construction resists thermal stress and corrosion
- Optimises fuel atomisation, emission control, and idle stability
- Compatible across diesel and hybrid TDV6 variants
- 1-year manufacturer warranty against defects
- 100% tested before dispatch from our UK warehouse
- Backed by Victorious 30-day money-back guarantee
Compatibility Overview
| Vehicle |
Model Code |
Year Range |
Fit Status |
| Range Rover Sport |
L494 TDV6 |
2015–2022 |
Direct Fit |
| Range Rover Sport |
L494 MHEV |
2018–2022 |
Direct Fit |
| Range Rover Velar |
L560 TDV6 |
2017–2022 |
Direct Fit |
| Range Rover Vogue |
L405 TDV6 |
2013–2020 |
Direct Fit |
| Land Rover Discovery 5 |
L550 TDV6 |
2017–2023 |
Direct Fit |
| Jaguar XF |
X260 TDV6 |
2015–2020 |
Direct Fit |
| Jaguar XJ |
C2D33 TDV6 |
2015–2020 |
Direct Fit |
⚠️ Verify fitment: Always confirm your engine code (TDV6, MHEV, or Hybrid) and model year before ordering. Contact us with your VIN for certainty.
Installation Notes
Difficulty: Intermediate | Time: 45–90 minutes
-
Disconnect the battery negative terminal and allow the engine to cool for 30 minutes.
-
Remove the engine cover by unclipping fasteners and gently lifting clear.
-
Disconnect the electrical harness from the faulty throttle body by pressing the release tab and sliding backward.
-
Remove the intake plenum bolts (typically 4 × M8 fasteners). Keep fasteners in a labelled container.
-
Carefully lift the old throttle body clear, noting the gasket position and any vacuum hose connections.
-
Clean the intake plenum mounting surface with a soft cloth and IPA to remove carbon residue and old gasket material.
-
Install a new gasket (not included; recommend OEM reference GJ32-9D381-AA or equivalent) onto the plenum.
-
Position the new throttle body over the gasket and engage the mounting holes.
-
Insert and hand-tighten all bolts evenly, then torque to 10–12 N⋅m in a star pattern.
-
Reconnect the electrical harness until the clip seats firmly with an audible click.
-
Reconnect any vacuum hoses in their original positions (reference photos taken before removal).
-
Refit the engine cover and secure all clips.
-
Reconnect the battery and start the engine.
-
Allow the ECM to relearn idle parameters over 2–3 minutes of gentle running. Do not drive aggressively until the system has stabilised.
⚠️ Warning: Throttle body replacement requires care around live electrical components and hot engine surfaces. Always disconnect the battery and allow sufficient cool-down time. If you are not confident performing this work, have a qualified Land Rover technician complete the installation. Improper fitment can result in poor idle, limp-home mode, or DTC P0122 (throttle position sensor fault).
Ready to Restore Engine Control
A failing throttle body assembly leads to rough idling, sluggish throttle response, and unwanted limp-home diagnostics. Our factory-spec replacement restores precision intake control and stable engine operation.
