Victorious · Discovery LR4 / Range Rover / Sport · Engine Parts
5.0L V8 Drive Belt Kit – OEM-Spec Serpentine & Secondary Belts
Factory-engineered replacement belt set for flawless power delivery on your 5.0L V8 engine.
LR4 / RR / Sport 2010–2013
5.0L V8 Petrol
Direct Fit
OEM-Equivalent
Dual Belt System
Overview
If you own a Land Rover Discovery LR4, Range Rover Full Size, or Range Rover Sport with the 5.0L V8 petrol engine, your drive belts are among the hardest-working components under the bonnet. These serpentine belts drive alternator, water pump, power steering, and air conditioning—simultaneously. When a belt begins to slip, fray, or crack, everything downstream suffers: electrical charging drops, coolant circulation weakens, and cabin comfort vanishes.
This Partsmost belt kit delivers direct-fit replacements engineered to OEM specification. You get a primary serpentine belt (LR064185) and secondary belt (LR012663)—the exact same units your vehicle shipped with. Installation is straightforward, and the performance gain is immediate: whisper-quiet operation, confident power steering response, and ice-cold A/C again.
Whether you're at 80,000 miles or 150,000, belt replacement is preventative maintenance that costs a fraction of the alternative. Keep your V8 running like factory-new.

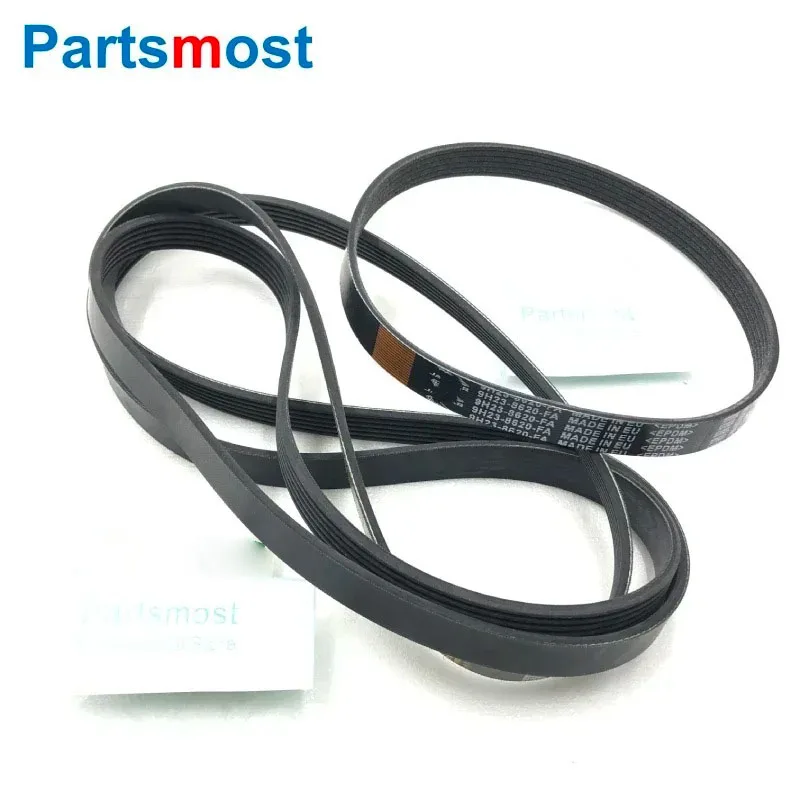

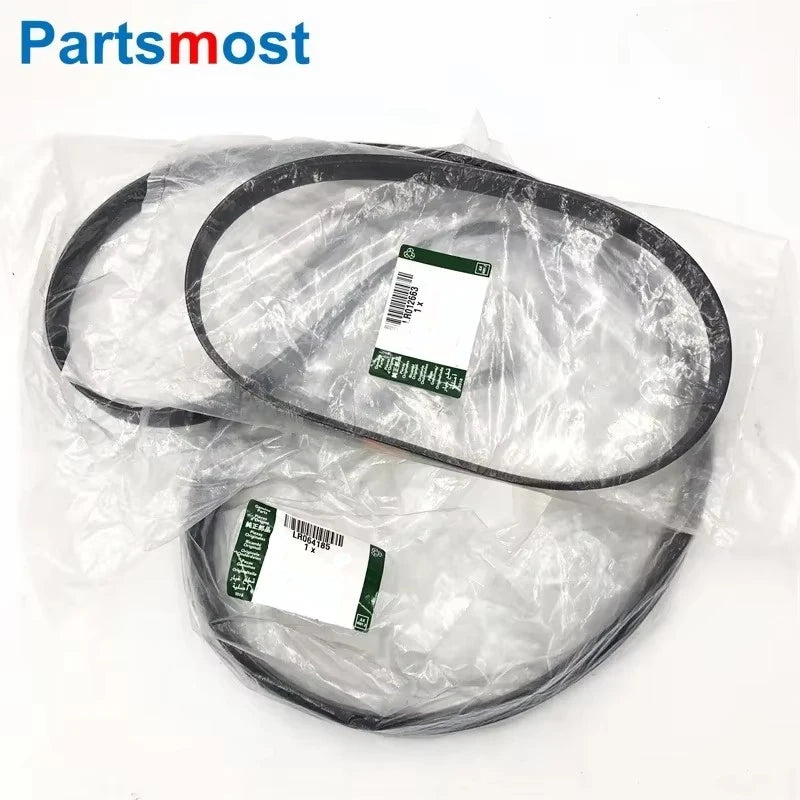

What's Included
🔧

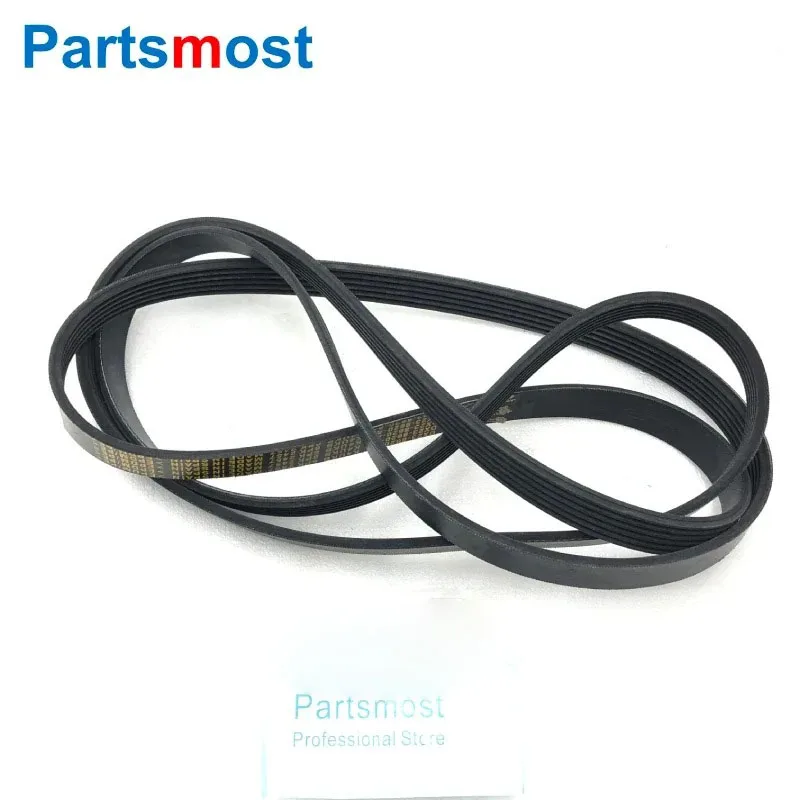

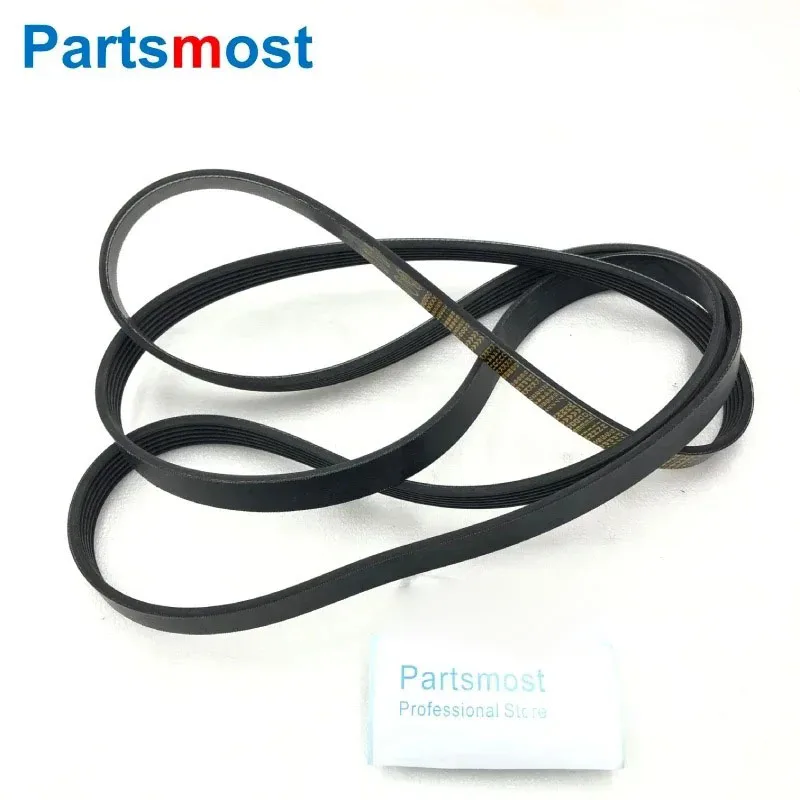

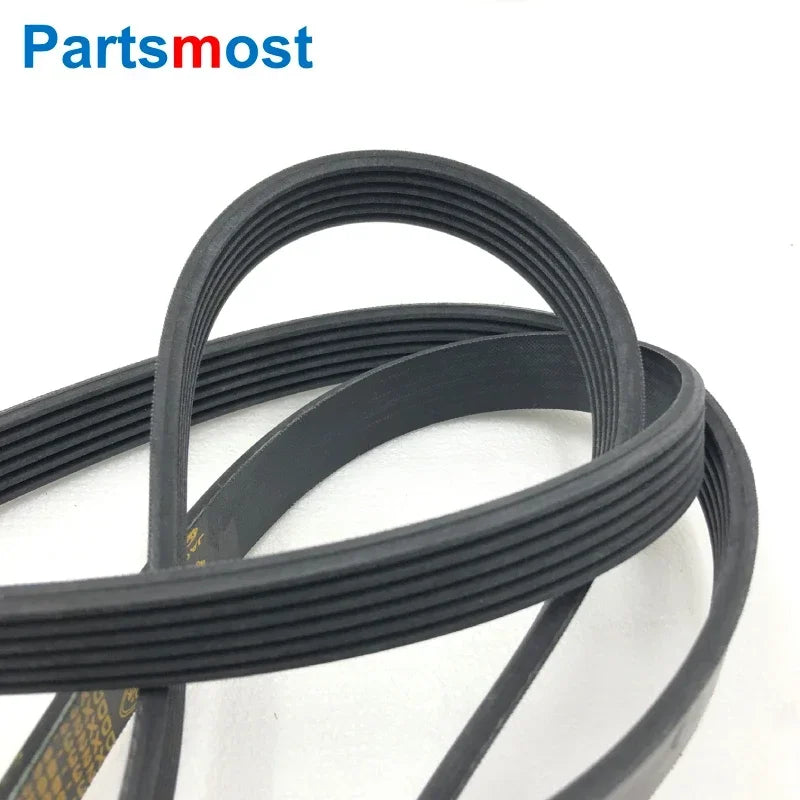

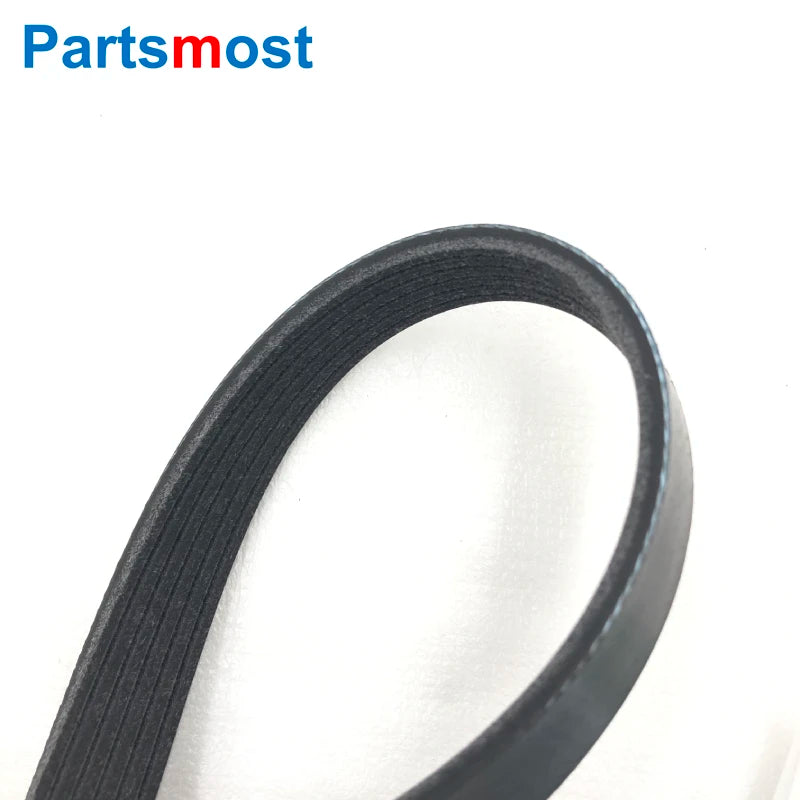

Primary Serpentine Belt

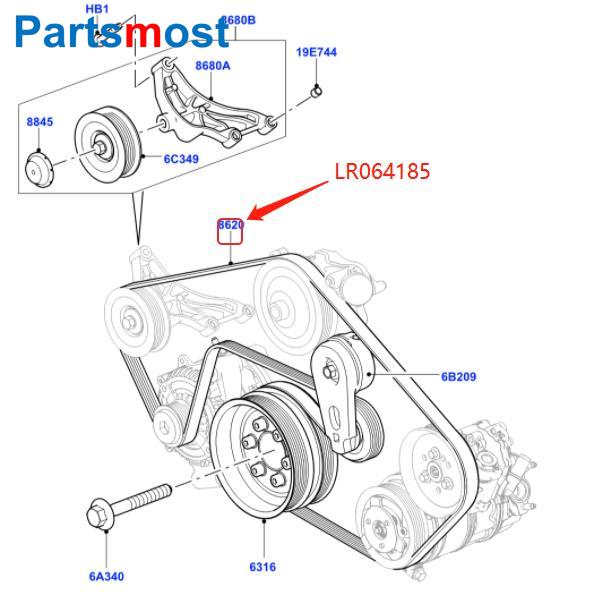

LR064185 / 6PK2457 – drives alternator, water pump, P/S, A/C
⚙️

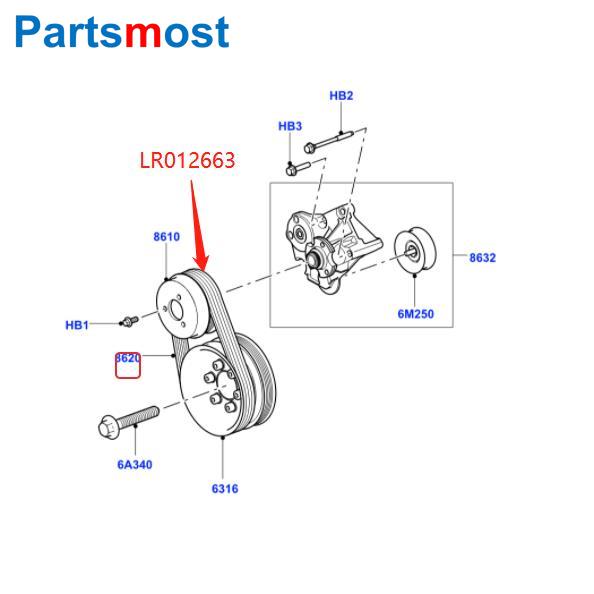

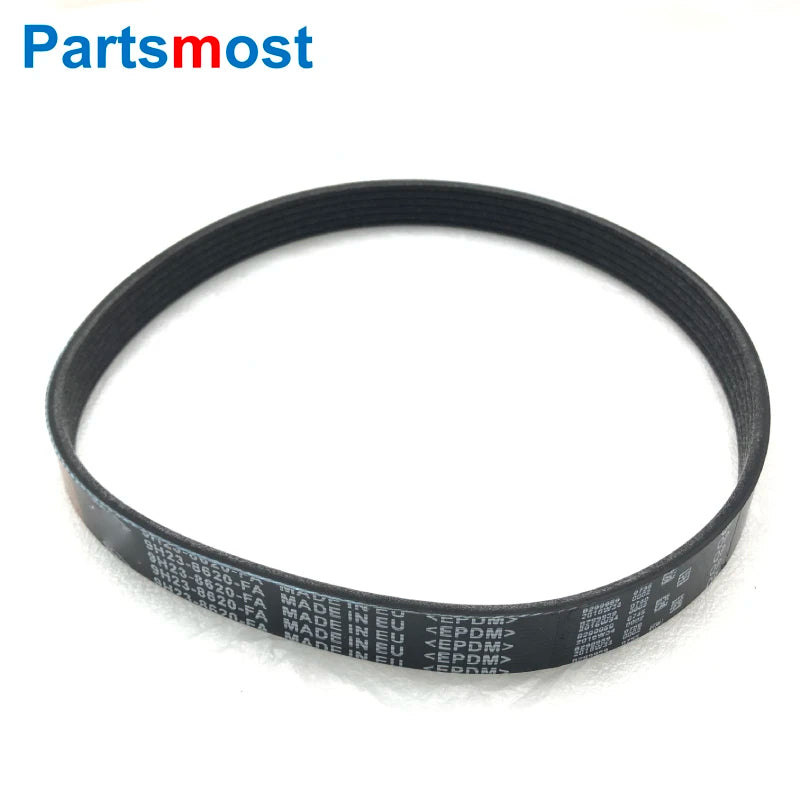

Secondary Belt

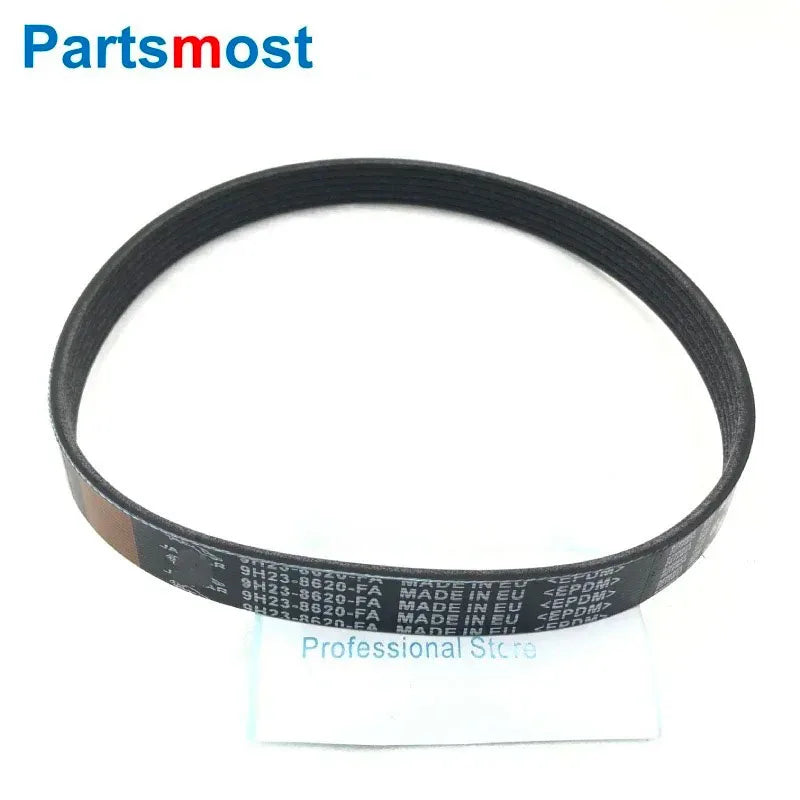

LR012663 / 9H23-8620-FA – auxiliary cooling & component drive
📋
Installation Guide
Easy-to-follow reference with torque specs and routing diagram
✓
Partsmost Warranty
1-year manufacturer guarantee; 30-day money-back promise
Product Highlights
- OEM-equivalent composition; passes Land Rover durability standards
- Dual-belt system covers all 5.0L V8 accessory drives in one kit
- Reduces serpentine slippage and restores alternator charging output
- Quieter operation; eliminates squealing and noise on cold starts
- Enhanced A/C compressor drive; faster cool-down cycles
- Stronger power steering response under load and turning
- Direct replacement—zero modification required; plug-and-play fit
- Compatible with Discovery LR4, Range Rover L405, Range Rover Sport L494
- Stable rubber compound; resists UV and ozone degradation
- Trusted by LR specialists; used on thousands of V8 installations
Compatibility
| Vehicle |
Years |
Engine |
Fit Status |
| Land Rover Discovery LR4 |
2010–2013 |
5.0L V8 Petrol |
Direct Fit |
| Range Rover Full Size (L405) |
2010–2012 |
5.0L V8 Petrol |
Direct Fit |
| Range Rover Sport (L494) |
2010–2013 |
5.0L V8 Petrol |
Direct Fit |
| Other Models & Engines |
— |
Non-V8 / Other Years |
Not Compatible |
Verify your VIN or engine displacement before purchase. Message us with your registration details if unsure.
Installation
Difficulty: Moderate | Time: 1–2 hours
-
Safety First: Disconnect the negative battery terminal. Allow engine to cool for 15–20 minutes.
-
Remove Trim & Guards: Detach plastic splash guards and trim pieces providing access to the belt runs. Mark their location with tape.
-
Locate Tensioner Pulley: Identify the serpentine belt tensioner (spring-loaded arm) on the driver side of the engine bay. This is your starting point.
-
Release Tension: Using a breaker bar, rotate the tensioner counterclockwise (relaxing spring pressure) and slide the old belt off all pulleys. Note the routing diagram on your fan shroud or owner's manual.
-
Inspect Pulleys: Check all pulleys—alternator, water pump, crank, power steering, A/C—for wear, cracks, or uneven wear patterns. Replace any damaged pulleys before installing new belts.
-
Install Primary Belt: Begin at the crank pulley. Route the new serpentine belt following the diagram, passing over alternator, water pump, power steering pump, and A/C compressor. Carefully thread it around each pulley.
-
Tension & Secure: Once fully seated, use the breaker bar to rotate the tensioner arm counterclockwise again, sliding the belt into the tensioner pulley. Release slowly; the spring should auto-tension the belt. If equipped with a manual tensioner bolt, tighten to factory spec (typically 25–35 Nm).
-
Install Secondary Belt: Repeat steps 4–7 for the auxiliary/secondary belt (LR012663), following its separate routing diagram.
-
Spin by Hand: Manually rotate the engine 3–4 full rotations (via crank bolt) to ensure belts track straight, don't slip, and clear all surrounds. Listen for rubbing or grinding.
-
Reconnect Battery & Test: Reconnect the negative battery cable. Start the engine and listen for 30 seconds. Belt noise should be minimal or absent. If chirping or squealing persists, recheck tension and pulley alignment.
-
Reattach Guards & Trim: Replace all plastic shrouding and trim in reverse order.
-
Final Check: Allow 5 minutes of idle running. Check alternator output (battery voltage should hold 13.5–14.5V). Confirm A/C and power steering are responsive.
⚠️ Belt Tension: Over-tightening causes premature bearing wear and pulley damage. Under-tensioning causes slippage and squealing. If unsure, consult a professional technician or use a belt tension gauge (typically 50–60 kg-force for serpentine drives).
Why Victorious?
We stock OEM-spec and premium-equivalent engine parts for every Discovery, Range Rover, and Defender model. Our team has fitted thousands of these kits; we know the fitment, the tolerances, and the real-world performance. Every product ships with our 30-day money-back guarantee and a full 1-year warranty.
Need Help? Call our specialist team at +44 203 943 9919 (Mon–Fri 9am–7pm GMT). We can confirm fitment, advise on ancillary replacements (tensioner, pulleys), or field any technical question—before or after your purchase.
Ready to Restore Your V8?
Belt replacement is one of the smartest preventative investments you can make. Enjoy whisper-quiet operation, restored charging output, and flawless A/C performance again.
