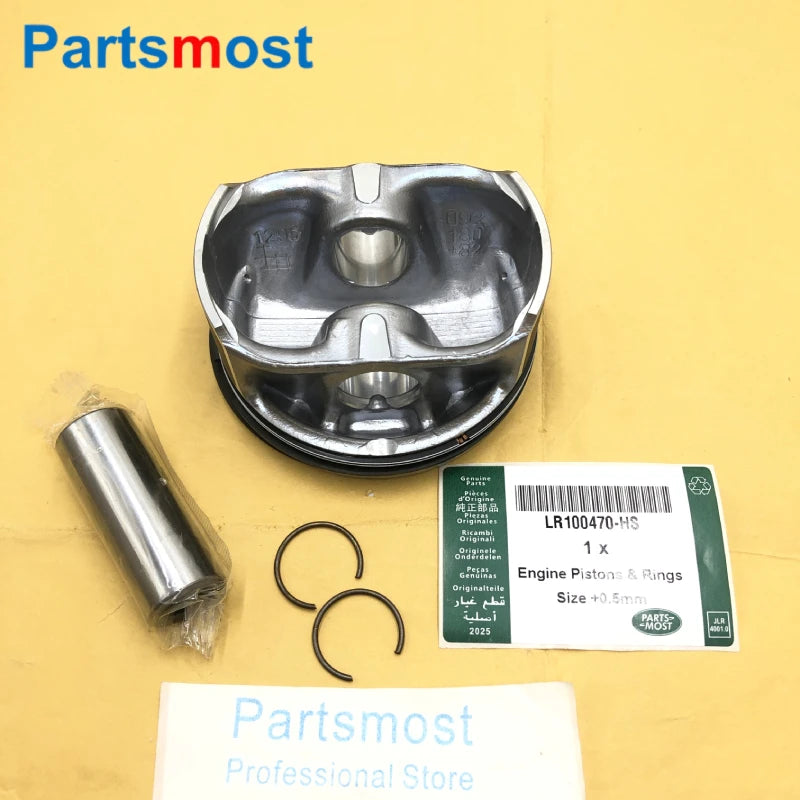

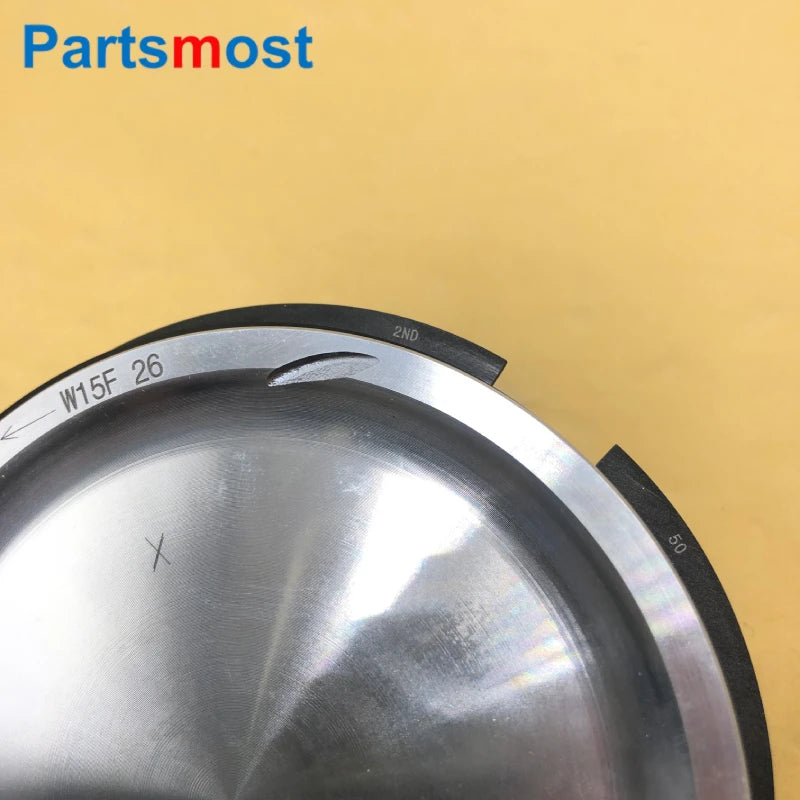

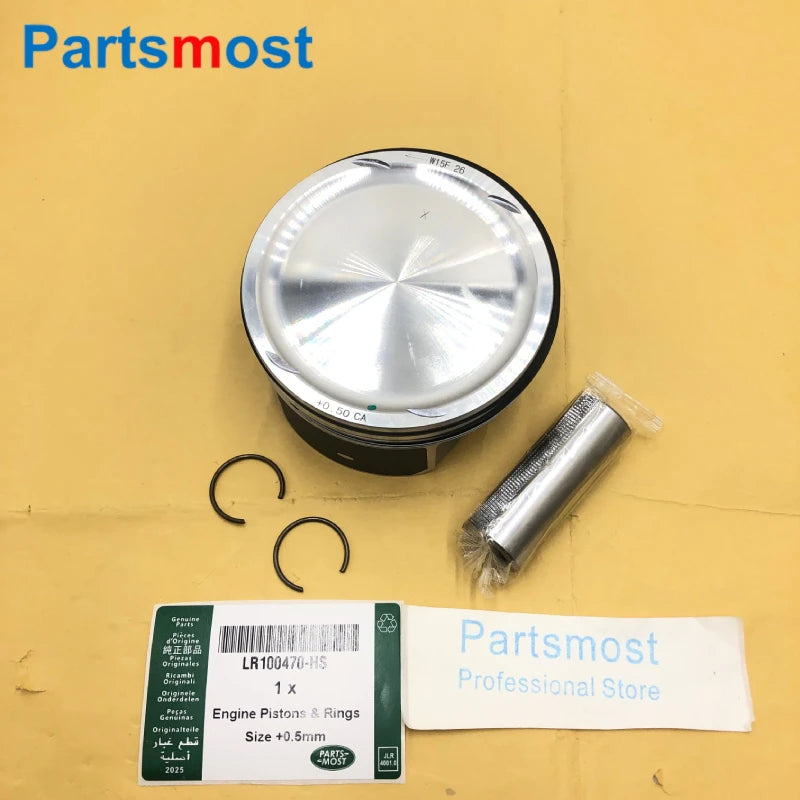

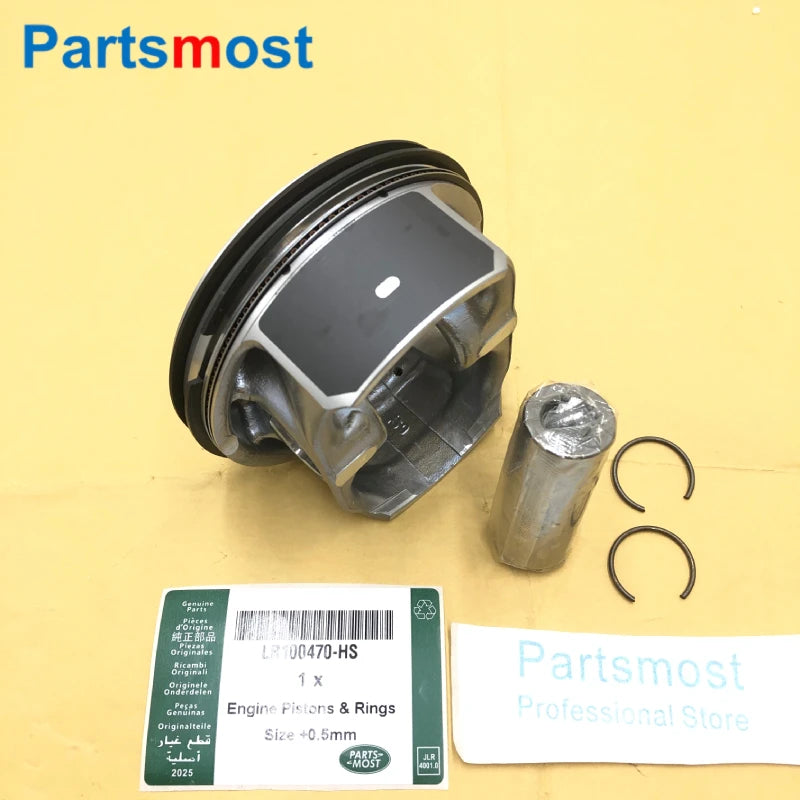

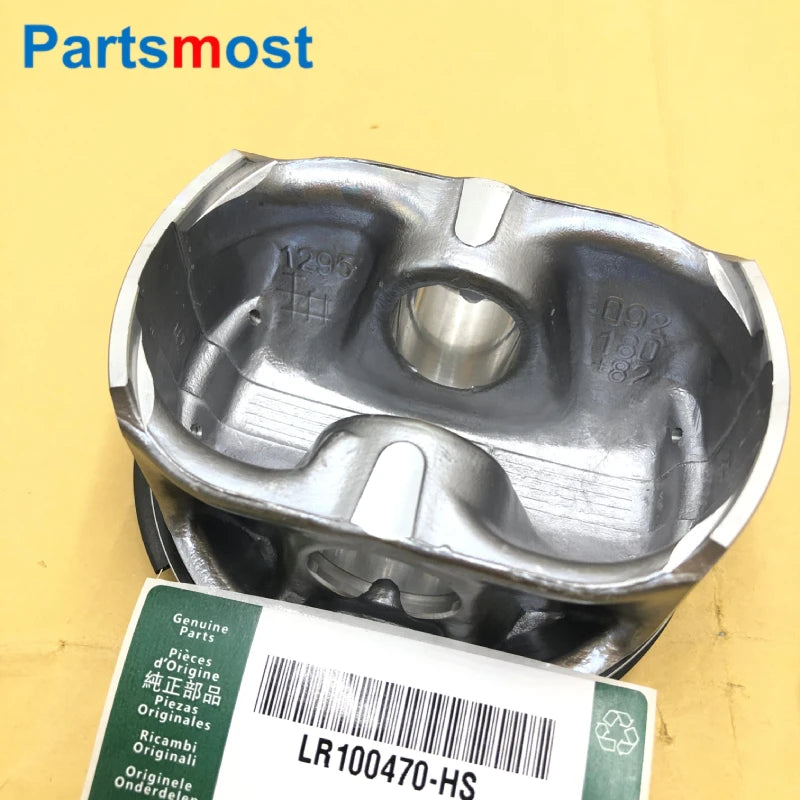

AJ133 5.0T Supercharged Piston & Ring Set – Discovery LR4 · Range Rover · Sport · Jaguar
Complete 8-piece piston assembly with OEM-spec rings for Land Rover and Jaguar supercharged engines. Direct replacement. 12-month warranty.
AJ133 Engine
5.0T Supercharged
2010–2017
OEM Direct Fit
Includes Rings
Overview
If you're running a Discovery LR4, Range Rover Sport, Range Rover, or Jaguar XJ/XF/XK with the 5.0T supercharged AJ133 engine, a failed piston or worn ring set demands immediate attention. Catastrophic engine damage follows quickly if ignored.
This 8-piece piston and ring assembly restores compression, oil control, and long-term durability to your engine. Engineered to OEM specifications (part number LR100470), each piston is manufactured to precise tolerances and paired with properly sized compression and oil control rings.
Available in standard bore, +0.25mm oversize, or +0.50mm oversize—choose based on your engine block condition. Fully assembled, tested, and ready to install. 12-month warranty included.

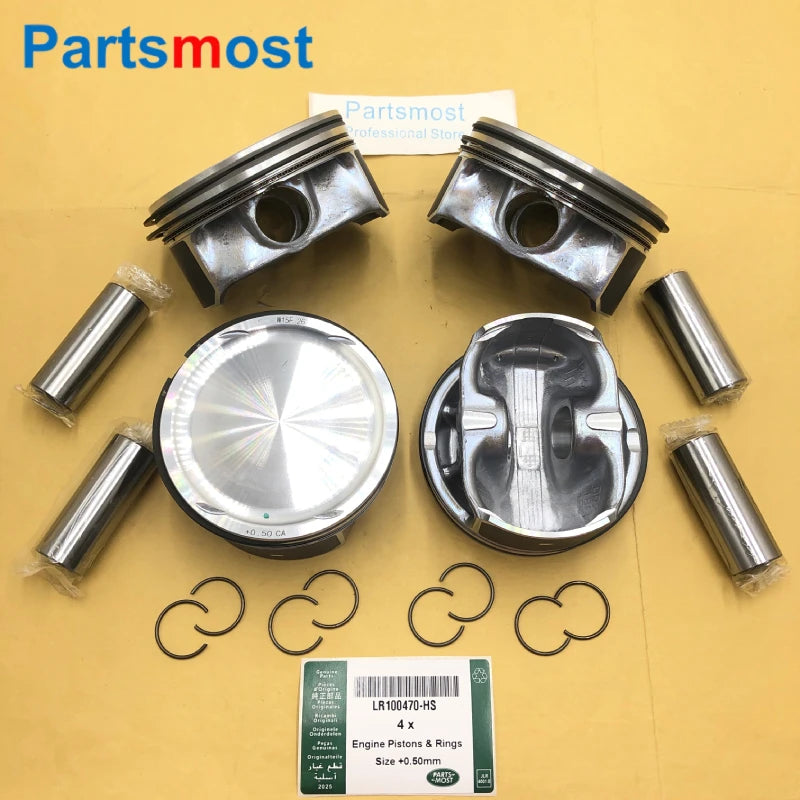

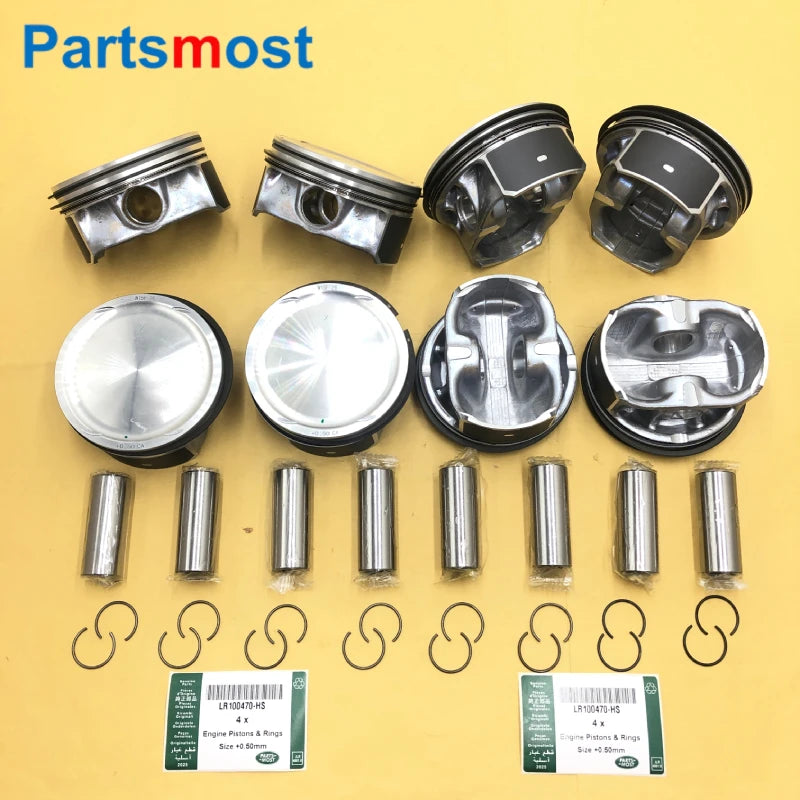

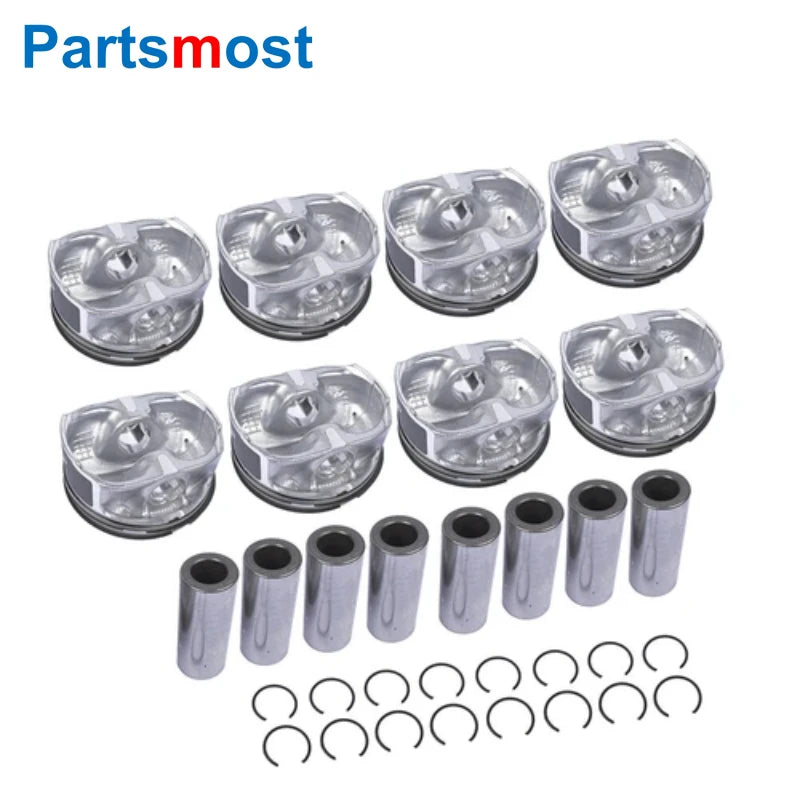

What's Included
🔧

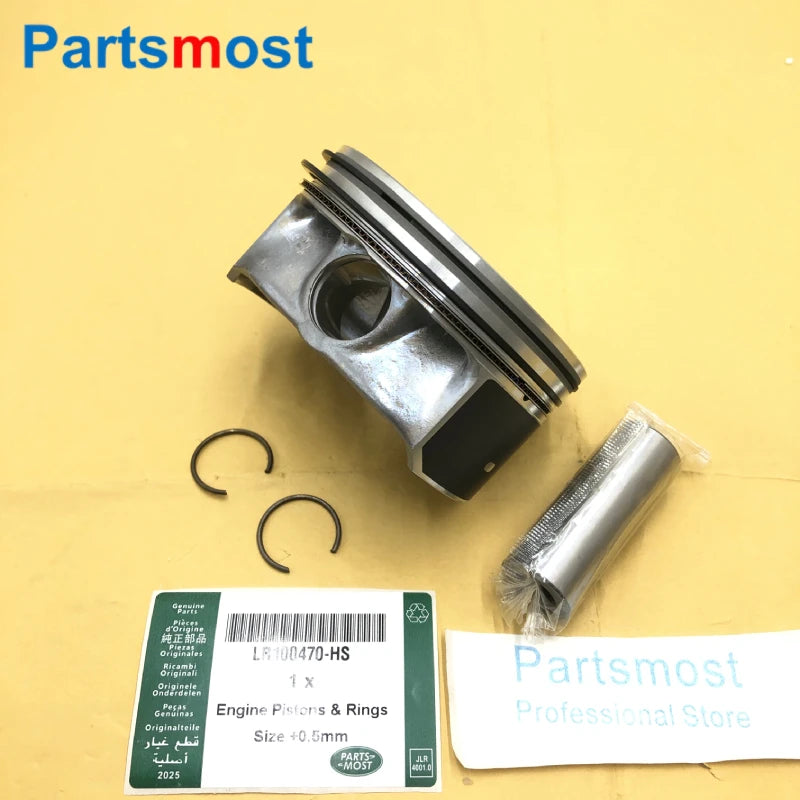

8 × Pistons
AJ133 OEM spec, matched pair set
⭕
Compression Rings
8 sets included, pre-installed
💧
Oil Control Rings
8 sets included, pre-installed
📋
Installation Notes
Bore size & engine specs included
Product Highlights
- OEM-equivalent specifications, AJ133-certified assembly
- All 8 pistons matched for bore roundness and weight
- Compression rings pre-gapped; oil rings pre-installed
- Standard, +0.25mm, and +0.50mm bore sizes available
- Compatible with Land Rover LR100470, LR104341, LR113583, LR113588
- Fits 2010–2017 Discovery LR4, Range Rover, Range Rover Sport
- Fits 2010–2017 Jaguar XJ, XF, XFR, XK, XKR, F-TYPE, XJR
- Direct engine drop-in; no machine work required (with proper bore)
- 12-month manufacturer warranty; quality guaranteed
- Ships with full documentation and torque specs
Compatibility Chart
| Vehicle |
Year |
Engine |
Fit |
| Land Rover Discovery LR4 |
2010–2013 |
5.0T Supercharged |
Direct Fit |
| Land Rover Range Rover (L5) |
2010–2017 |
5.0T Supercharged |
Direct Fit |
| Land Rover Range Rover Sport (L494) |
2010–2017 |
5.0T Supercharged |
Direct Fit |
| Jaguar XJ (5.0T) |
2010–2017 |
5.0T Supercharged |
Direct Fit |
| Jaguar XF / XFR (5.0T) |
2010–2015 |
5.0T Supercharged |
Direct Fit |
| Jaguar XK / XKR (5.0T) |
2010–2015 |
5.0T Supercharged |
Direct Fit |
| Jaguar F-TYPE (5.0T) |
2014–2017 |
5.0T Supercharged |
Direct Fit |
| Jaguar XJR (5.0T) |
2014–2017 |
5.0T Supercharged |
Direct Fit |
Note: Verify your engine block bore size before ordering. Standard, +0.25mm, and +0.50mm oversizes available. Confirm part number LR100470, LR104341, LR113583, or LR113588 on your engine.
Installation Overview
Difficulty Level: Advanced (Engine Removal Required)
Time Required: 6–10 hours (with experienced technician)
- Remove engine from vehicle and secure on engine stand
- Remove cylinder head and drain oil completely
- Unbolt connecting rods and remove old pistons carefully
- Clean cylinder bores and hone to proper finish (if oversize)
- Install new pistons with rings; match rod orientation
- Torque connecting rod bolts to OEM spec (typically 65–75 Nm, verify in documentation)
- Reinstall cylinder head; torque to OEM sequence and spec
- Prime engine with clean oil before starting
- Reinstall engine and refill with OEM-spec 5W-30 synthetic oil
- Run idle cycle; check for leaks and proper compression
Warning: This is a major engine assembly job. We recommend professional installation by a qualified Land Rover or Jaguar specialist. Improper piston installation can result in catastrophic engine failure, rod bearing damage, or complete engine seizure. Always refer to the factory service manual for your specific engine code and vehicle year.
