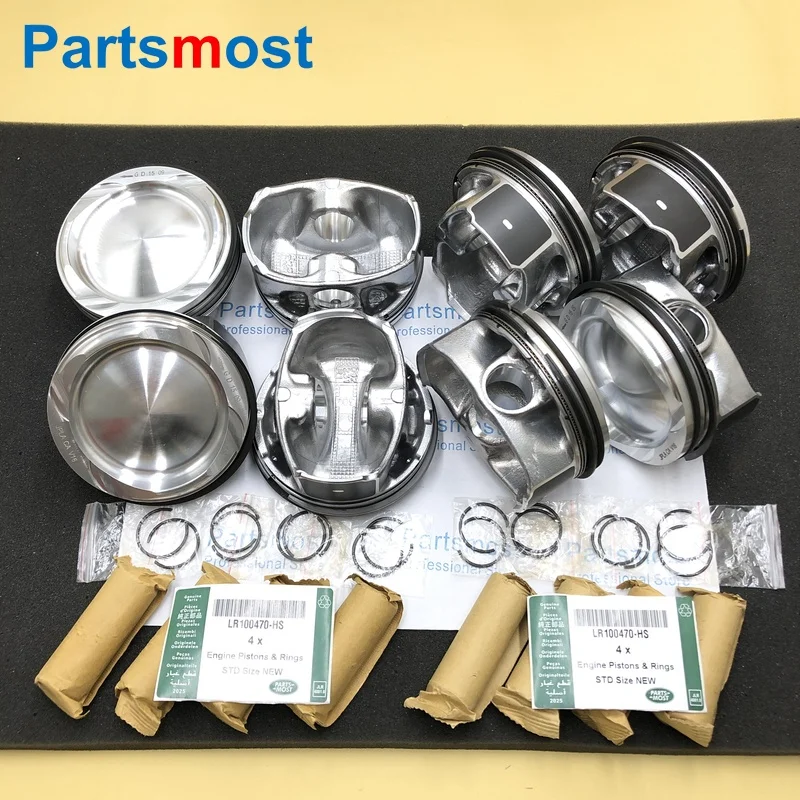

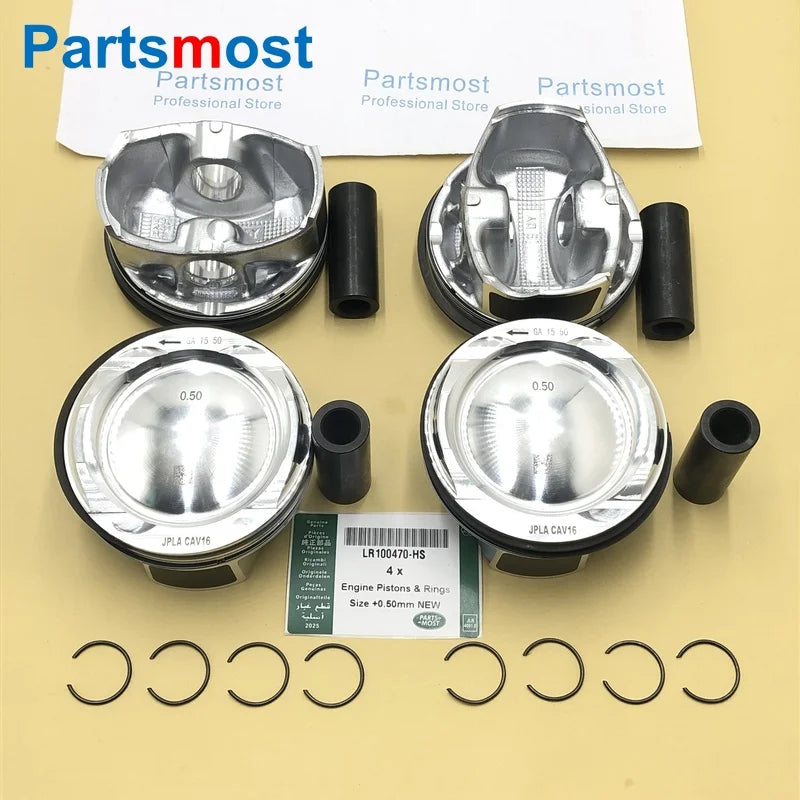

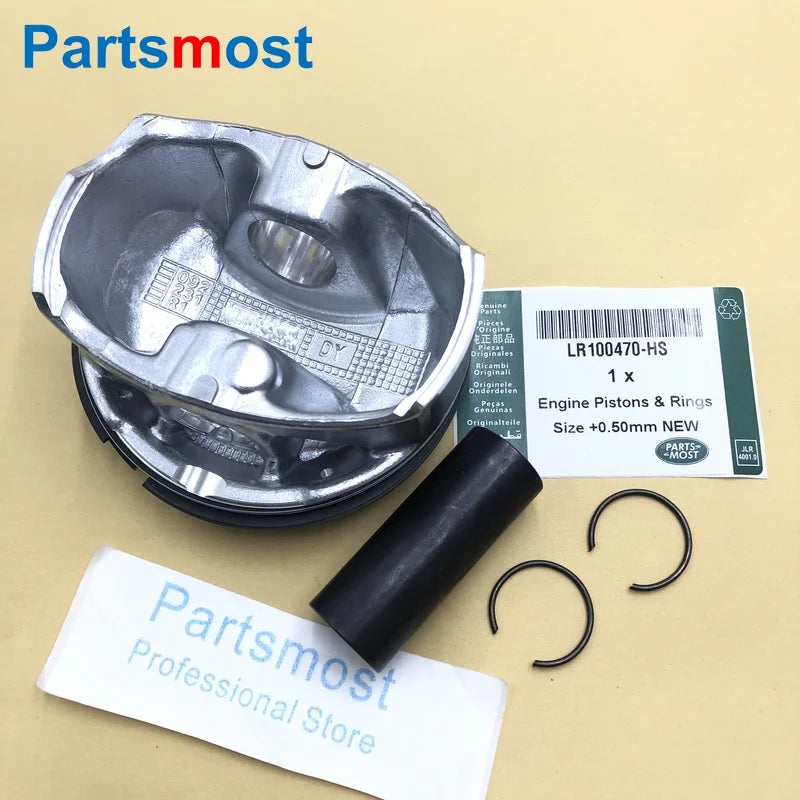

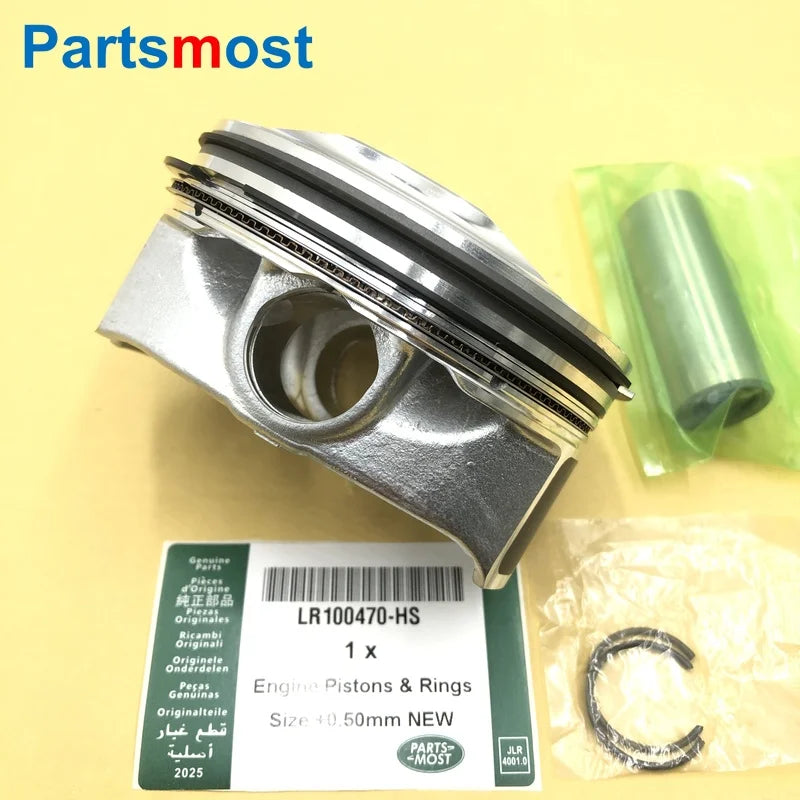

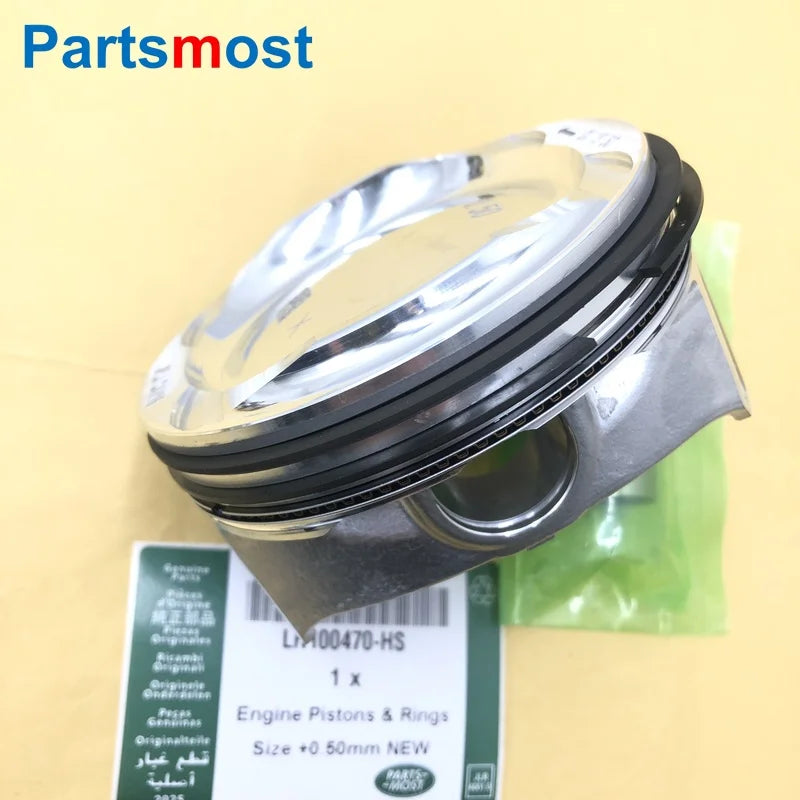

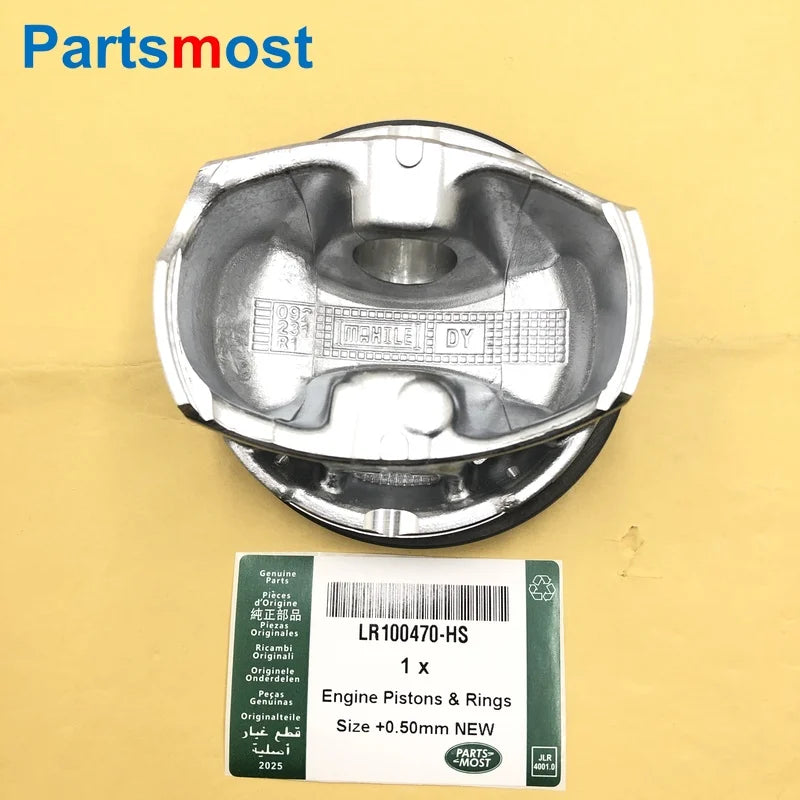

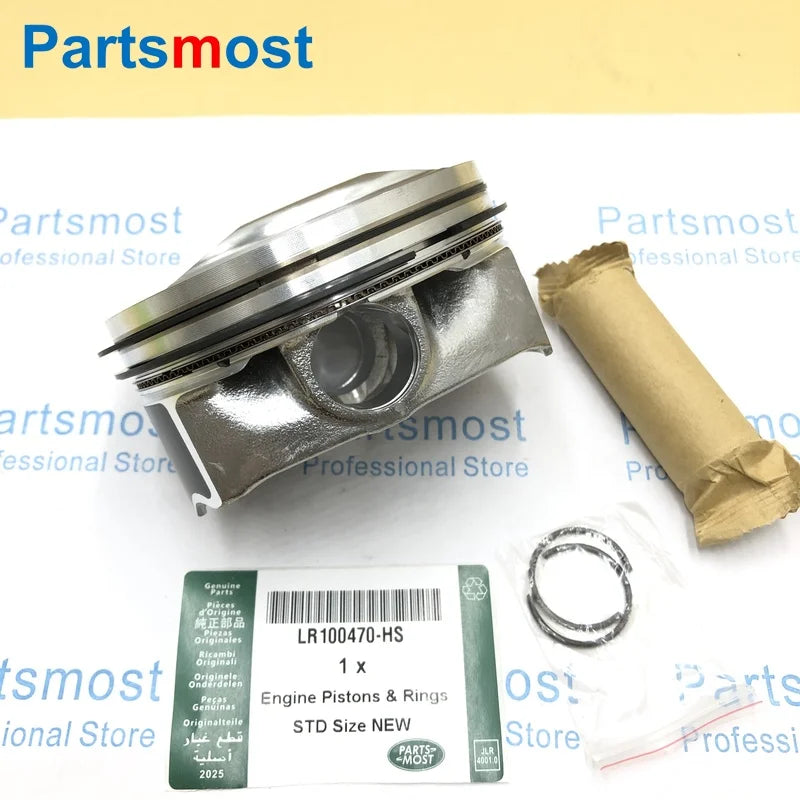

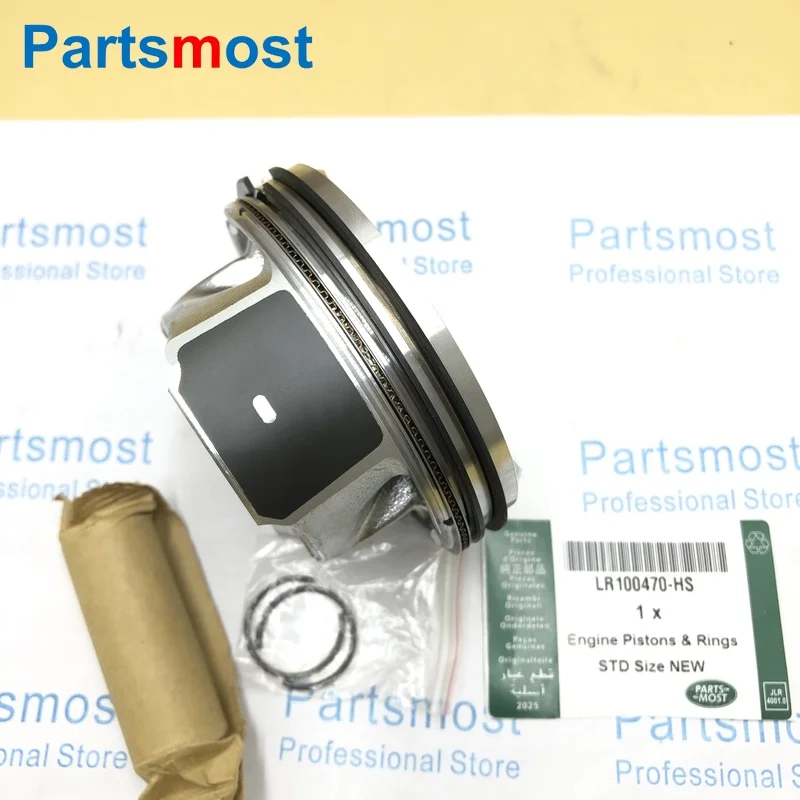

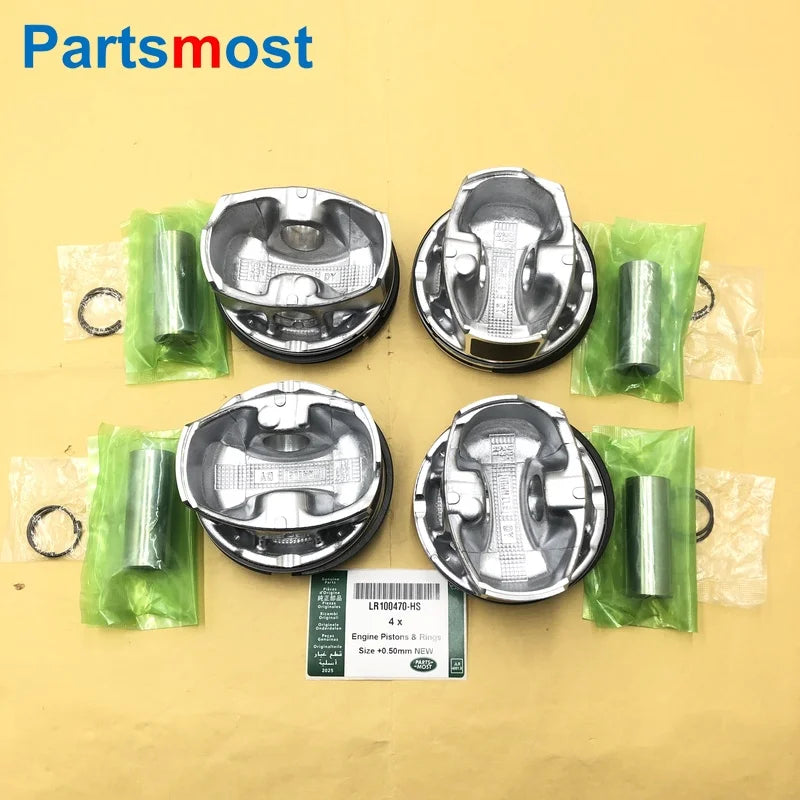

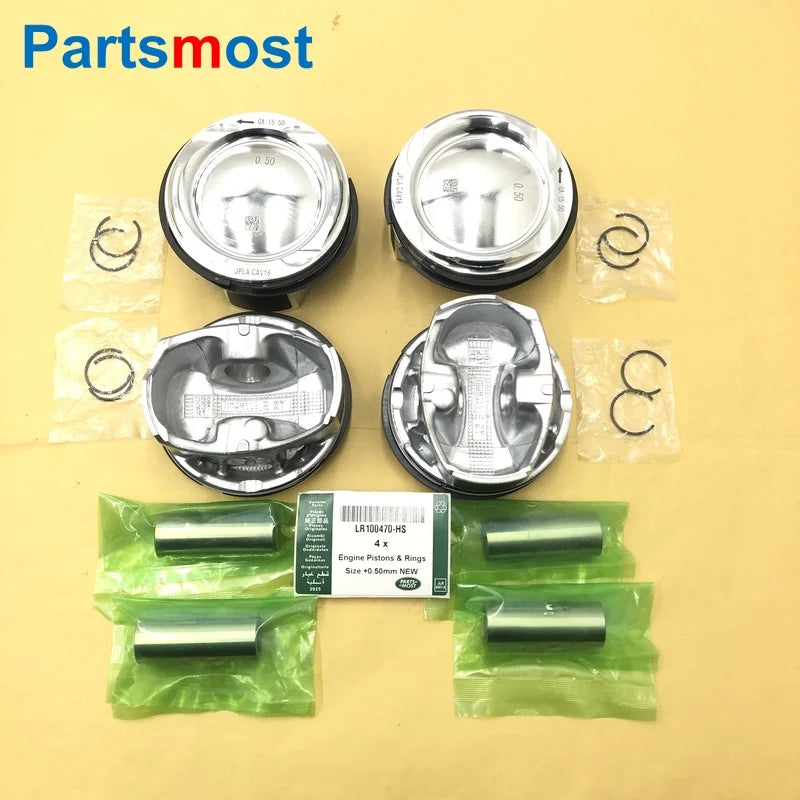

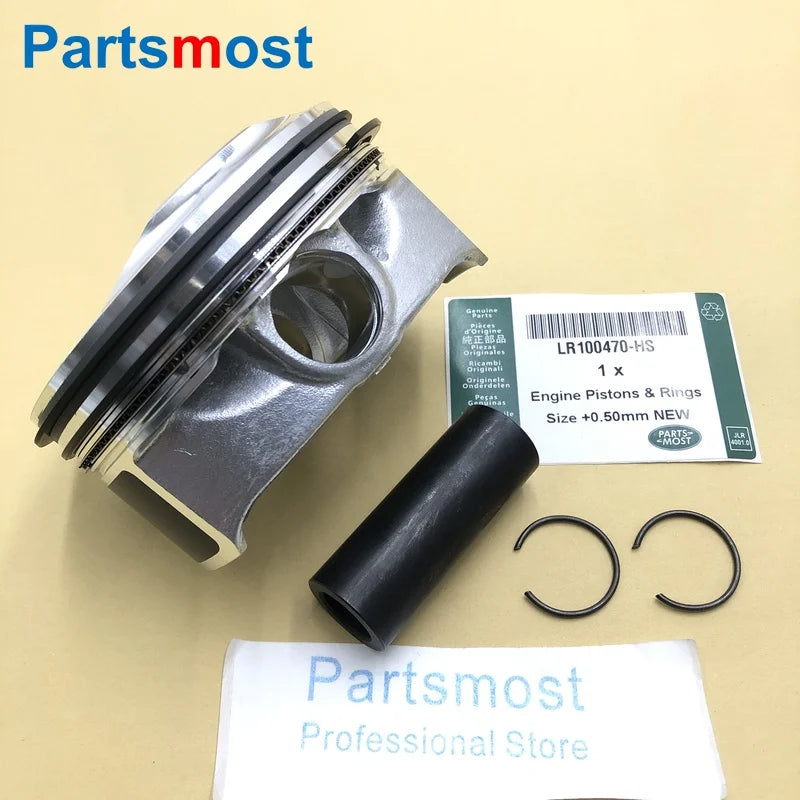

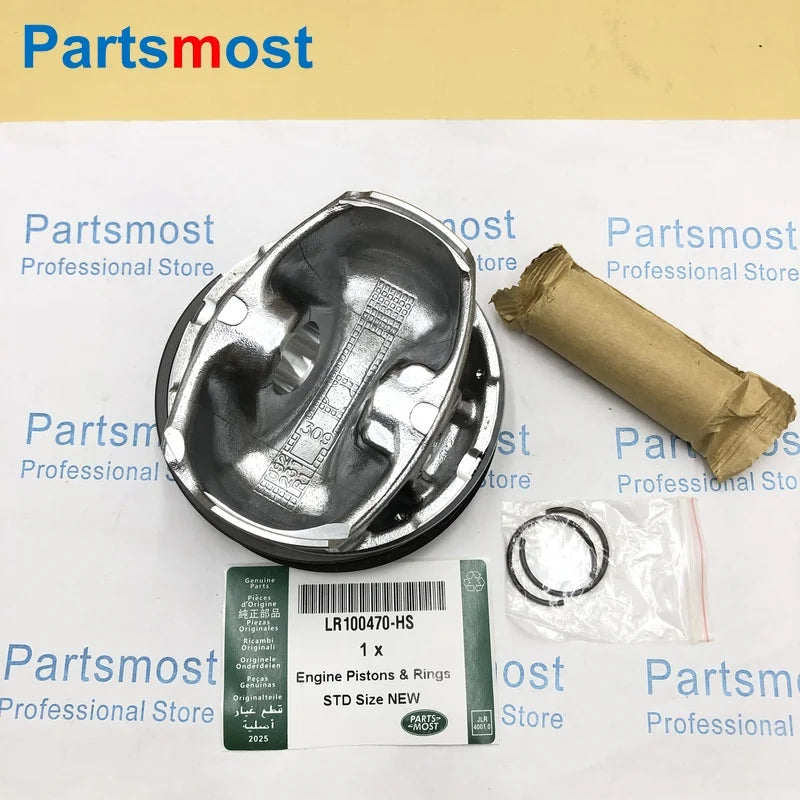

AJ133 5.0T V8 Supercharged Piston & Ring Set – Complete 8-Piece Kit
Precision-engineered replacement pistons and compression rings for 508 PS AJ133 engines. Direct OEM fitment, 12-month warranty, multiple size options.
AJ133 Engine
5.0T Petrol
508 PS
SVR Supercharged
OEM Alternative
2010–2017
Overview
The AJ133 is one of the most celebrated high-performance petrol engines in the Land Rover and Jaguar lineup—a 5.0-litre supercharged V8 producing 508 PS in SVR and high-spec applications. This complete piston and compression ring set keeps your engine running at peak efficiency, replacing worn or damaged components with direct OEM-equivalent parts that restore compression, reduce blow-by, and maintain the precision tolerances your vehicle demands.

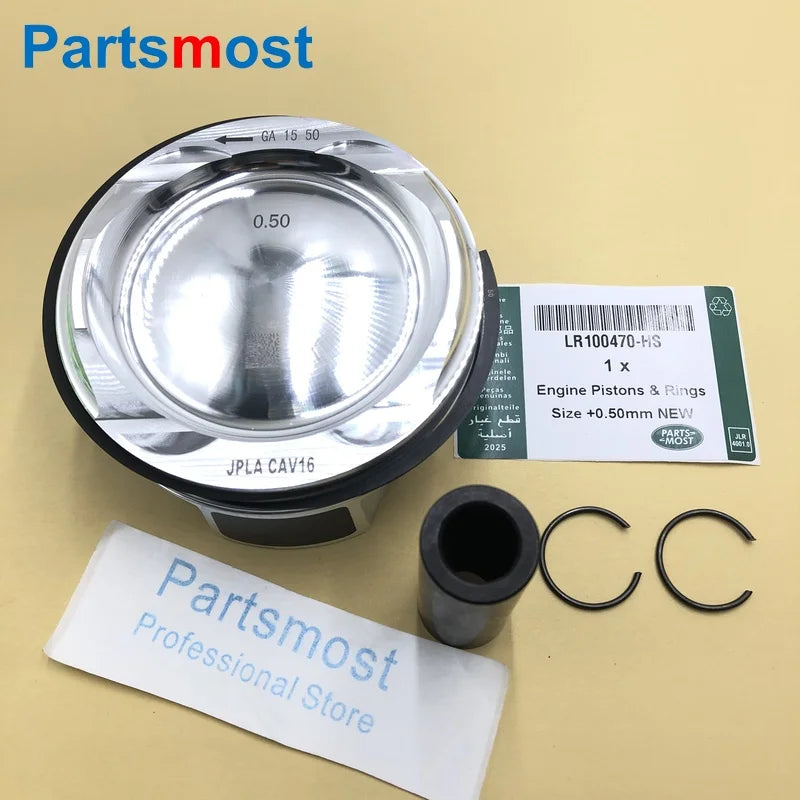

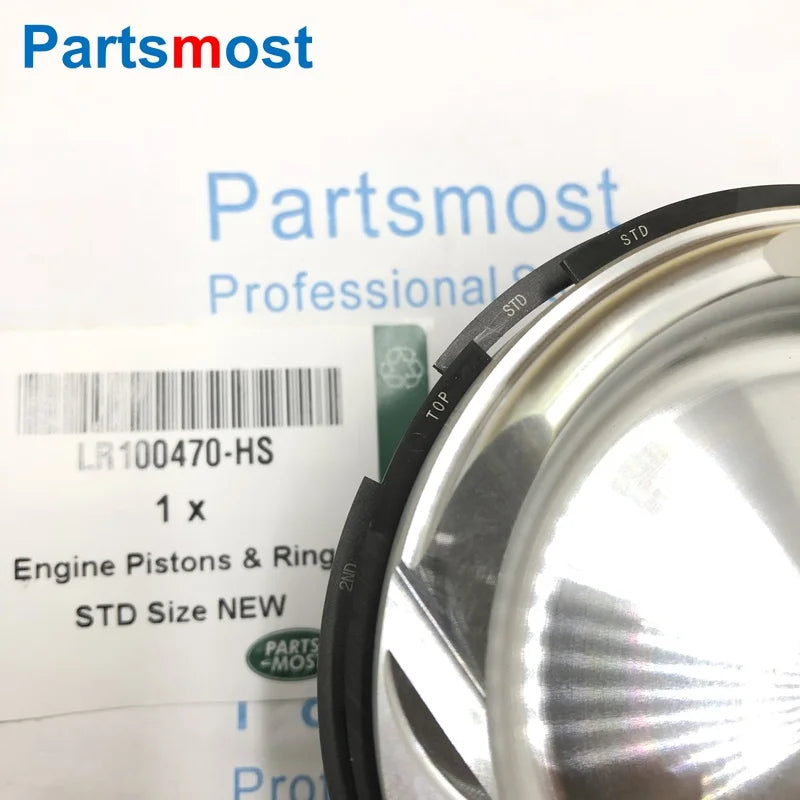

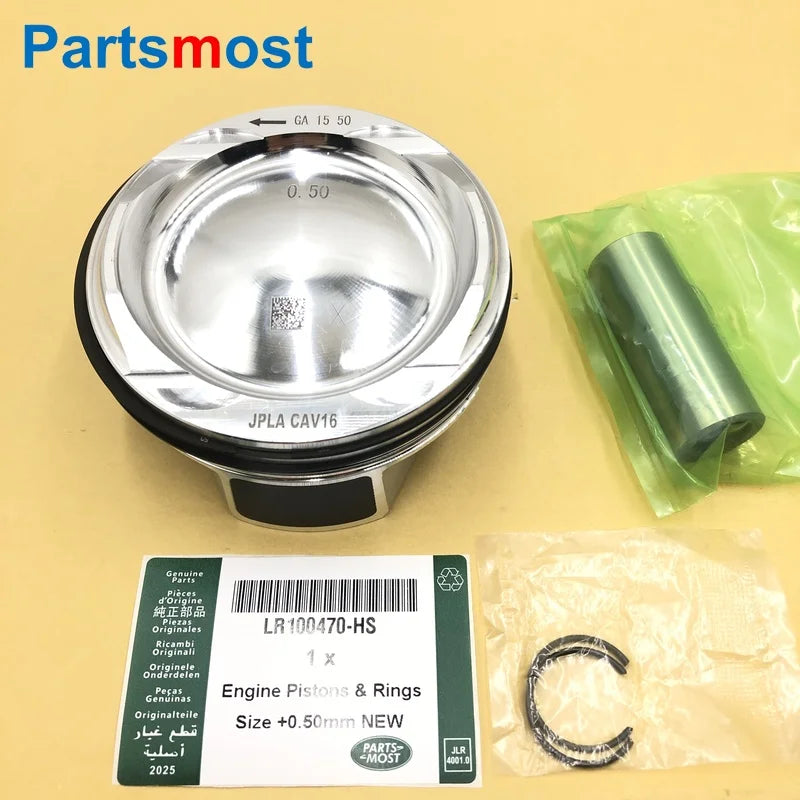

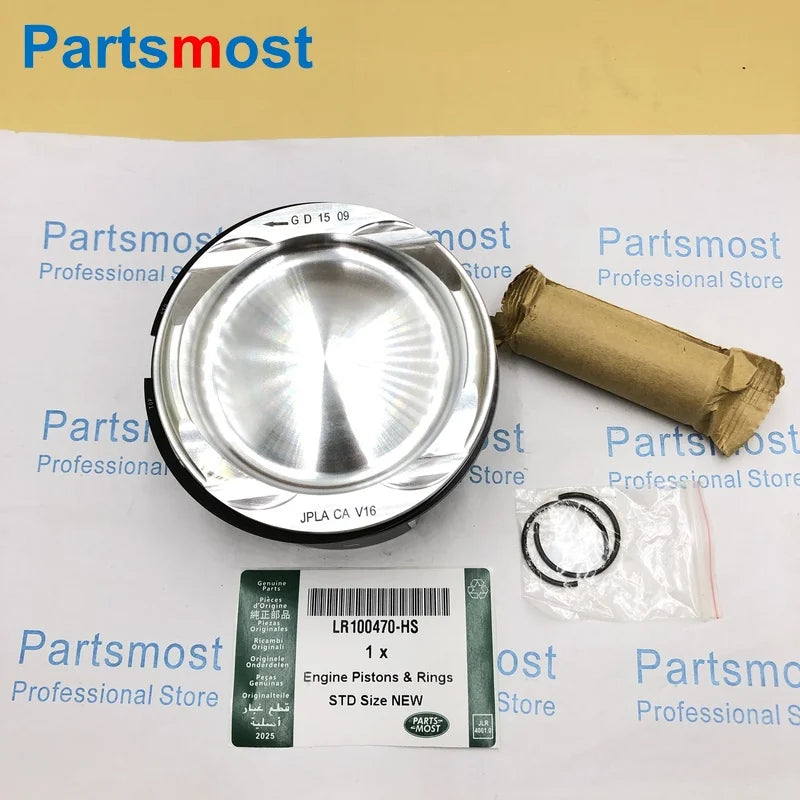

Designed to fit Range Rover, Range Rover Sport, and Jaguar models (XJ, XF, XFR, XK, XKR, F-TYPE, XJR), this 8-piece kit includes all pistons and rings needed for a full bottom-end refresh. Available in three size options—standard, +0.25 mm oversized, or +0.5 mm oversized—to suit rebored cylinders or standard bore engines.
Each piston is precision-cast and honed to exacting tolerances; rings are engineered for optimal gas sealing and durability under boost. With a 12-month warranty and over a decade of proven reliability in the aftermarket, this kit delivers the peace of mind serious enthusiasts expect.

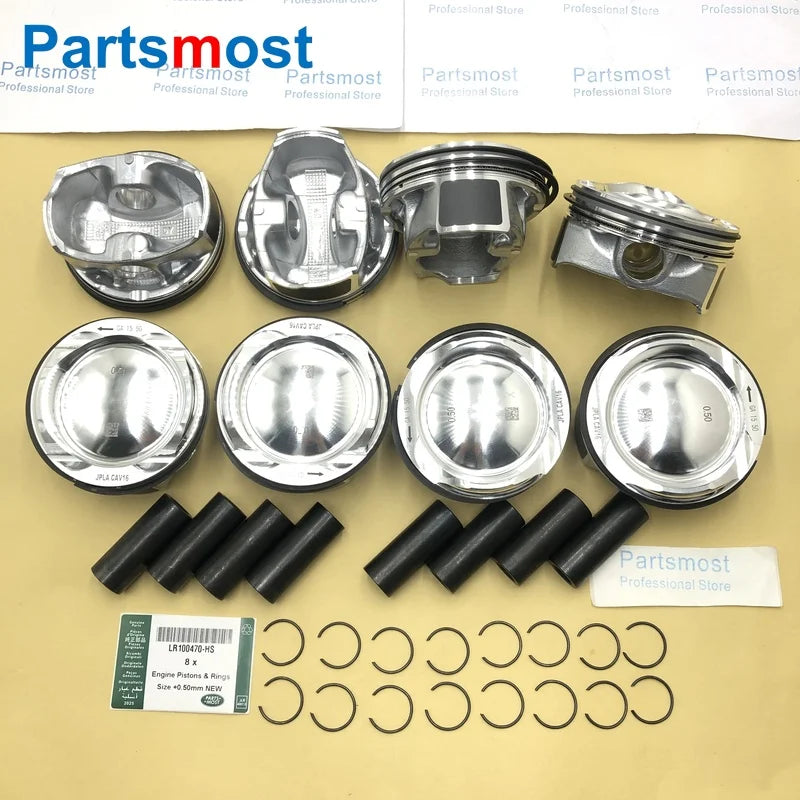

What's Included
⚙️

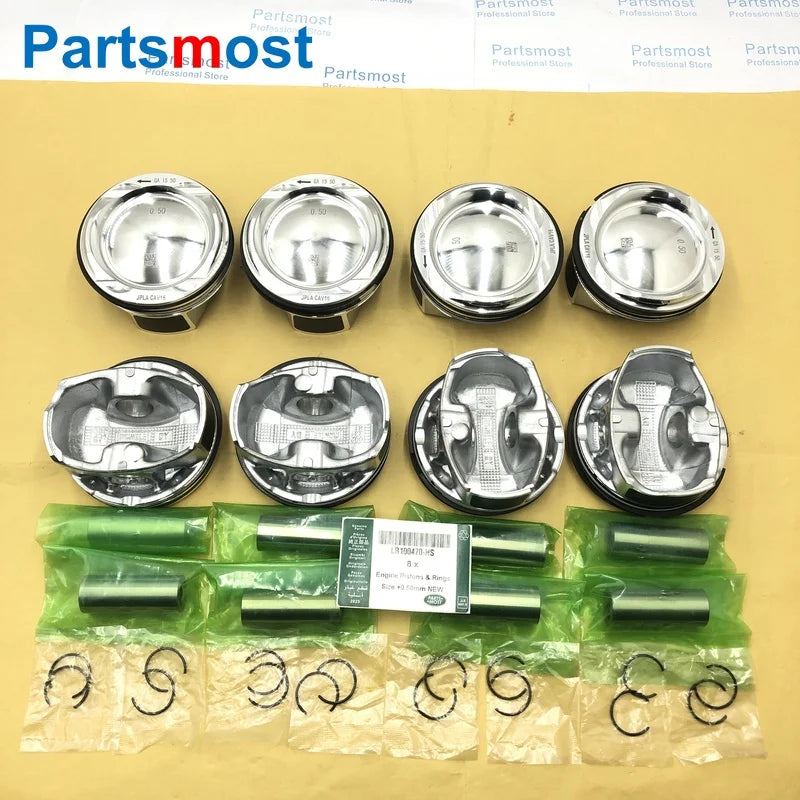

8x Pistons
One per cylinder, AJ133 geometry
🔩
8x Ring Sets
Compression rings for all cylinders
📋
OEM Part Numbers
9W836110DA / 9W83-6110-DA
🛡️
12-Month Warranty
Coverage against manufacturing defects
Product Highlights
- OEM-quality construction with direct fitment to AJ133 engines
- Restores compression and reduces blow-by in high-mileage engines
- Three size options: Standard, +0.25 mm, +0.5 mm oversized
- Supercharged-engine rated for 508 PS applications
- Full 8-piece kit—all pistons and rings in one purchase
- Precision-honed for consistent ring seal and durability
- Aftermarket-reliable, decade-proven in service
- 12-month manufacturer warranty included
- Compatible with all SVR and high-spec V8 models
- Ships worldwide via DHL, FedEx, UPS, TNT
Compatibility
| Vehicle |
Engine / Years |
Fitment |
| Range Rover (L405) |
5.0L V8 2010–2017 |
Direct Fit |
| Range Rover Sport (L494) |
5.0L V8 2010–2017 |
Direct Fit |
| Land Rover LR4 |
5.0L V8 2010–2013 |
Direct Fit |
| Jaguar XJ (2012–2017) |
5.0L V8 AJ133 |
Direct Fit |
| Jaguar XF / XFR (2010–2011) |
5.0L V8 |
Direct Fit |
| Jaguar XF / XFR (2012–2015) |
5.0L V8 |
Direct Fit |
| Jaguar XK / XKR (2010–2012) |
5.0L V8 |
Direct Fit |
| Jaguar XK / XKR (2013–2015) |
5.0L V8 |
Direct Fit |
| Jaguar XKR-S (2012–2015) |
5.0L V8 |
Direct Fit |
| Jaguar XFR-S (2013–2015) |
5.0L V8 |
Direct Fit |
| Jaguar F-TYPE (2014–2017) |
5.0L V8 |
Direct Fit |
| Jaguar XJR (2014–2017) |
5.0L V8 |
Direct Fit |
Engine Part Numbers: LR100470, LR104341, LR113583, LR113588
Installation Notes
Professional Engine Work Required
Piston and ring replacement is an advanced engine rebuild procedure. We strongly recommend professional installation by a qualified mechanic or engine specialist. Improper installation can result in catastrophic engine damage.
-
Engine Removal: Remove engine from vehicle per manufacturer service procedures.
-
Cylinder Head & Block Separation: Disassemble engine to access crankshaft and cylinders.
-
Piston Extraction: Remove old pistons and rings carefully to avoid cylinder damage.
-
Cylinder Inspection: Measure and hone cylinders to specification; verify correct bore size.
-
Ring Installation: Install new rings onto each piston, ensuring correct orientation and gap.
-
Piston Installation: Fit pistons into cylinders with ring compressor; hand-tighten connecting rod bolts.
-
Torque & Timing: Torque all fasteners to OEM spec; set ignition timing and fuel injection.
-
Engine Test: Prime engine, check for leaks, perform cold and hot start tests.
⚠️ Critical: Verify your exact engine variant and cylinder bore size before purchasing. Incorrect piston size will cause severe engine damage. If unsure, submit your VIN or engine block photographs to our support team before checkout.
Ready to Rebuild Your Engine?
Restore compression, eliminate blow-by, and bring your AJ133 back to full performance with a complete piston and ring set engineered to OEM tolerances. Work with a qualified mechanic, use genuine parts, and get back on the road with confidence.
